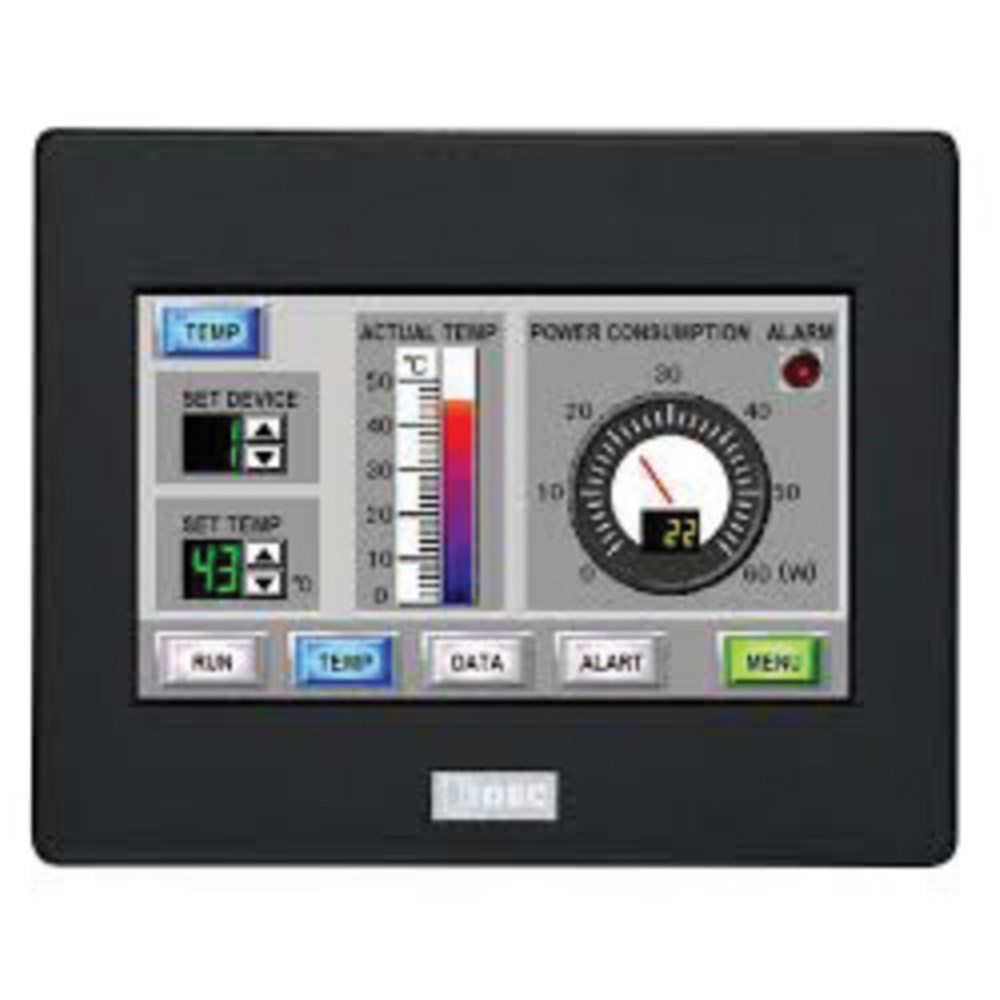

IDEC HG1G-4VT22TF-B Operator Interface HMI 4.3in TFT Colour LCD 12-24VDC

Product Code: HG1G-4VT22TF-B

  • Compact 4.3" TFT colour LCD display
  • Operates in -20 to 55°C range
  • Versatile COM, LAN, USB1 & USB2 interfaces
  • Efficient with 8W power consumption
  • Suitable for 12-24 VDC systems
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Operator Interface
Brand
IDEC
Series
HG series

Electrical

Power Consumption
8W
Supply Voltage
12-24V DC
Sunlight Readable
Yes (800 cd/m²)
Touch Type
Analog resistive membrane

Mechanical

Mounting Method
Panel mount
Display Colour
65536 Colors

Dimensions & Physical Data

Depth
31.8 mm
Height
102 mm
Width
128 mm
Panel Cut-Out Size
118 x 92 mm
Display Size
4.3-inch

Environmental

Storage Temperature
-20 to 70°C
Operating Temperature
-20 to 55°C
IP Rating
IP66F/IP67F

Communication & Control

Ethernet Port Speed
10/100 Mbit
Ethernet Ports
1
Serial Ports
2
USB Port
2
Supported Ethernet Protocols
Modbus TCP (Client/Server), FTP Server, Ethernet/IP, and various manufacturer-specific drivers
Supported Serial Protocols
Modbus RTU

Safety, Standards & Compliance

Compliance Standards
UL 508
Hazardous Location Ratings
Class I Division 2
