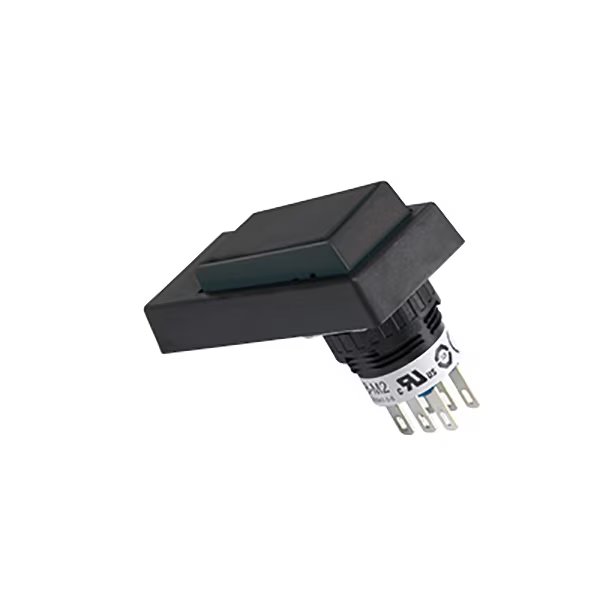

IDEC HE3B-M2PB Enabling Switch 2NO

Product Code: HE3B-M2PB

  • Operates in -25 to 60°C temp range
  • IP40/IP65 protection rating
  • Complies with IEC/EN60947 standards
  • Mechanical life of 1 million operations
  • Rated insulation voltage of 125 V
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enabling Switch
Brand
IDEC
Series
HE3B

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
2
Plug Type
Solder Terminal
Rated Current
3 A
Rated Voltage
125 V

Mechanical

Actuator Type
Rectangular Pushbutton
Housing Colour
Black
Housing Material
Silicon Rubber

Dimensions & Physical Data

Depth
54 mm
Height
30.5 mm
Weight
18 g
Width
25 mm

Environmental

Operating Temperature
-25 to 60 °C
IP Rating
IP65

Documents

IPD Product Catalogue V17
