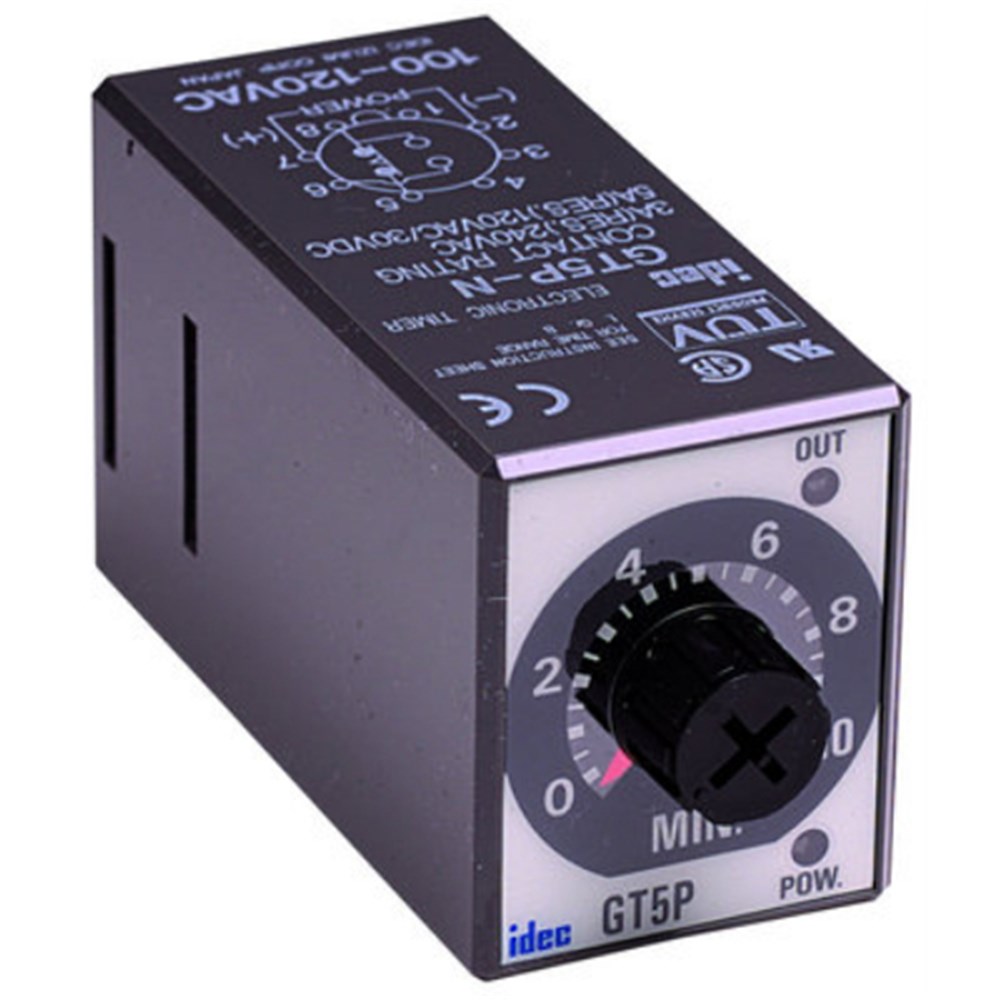

IDEC GT5P-N10SA200 ON Delay Timers 200-240VAC Pin Terminal

Product Code: GT5P-N10SA200

  • Plug-in timer for easy installation
  • Operates on 200-240 VAC
  • Compact size: 29x36x81.5 mm
  • Long electrical life: 100,000 ops
  • CE, CSA, UL recognized
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
On Delay Timer
Brand
IDEC
Series
GT5P

Electrical

No. of Outputs
2
Timing Range
0.2 sec to 10 sec
Contact Configuration
SPDT
Rated Current (In)
5A
Rated Voltage (Ur)
200V to 240V AC

Dimensions & Physical Data

Depth
81.5mm
Height
36mm
Width
29mm

Environmental

Ambient Temperature
-10°C to 50°C
