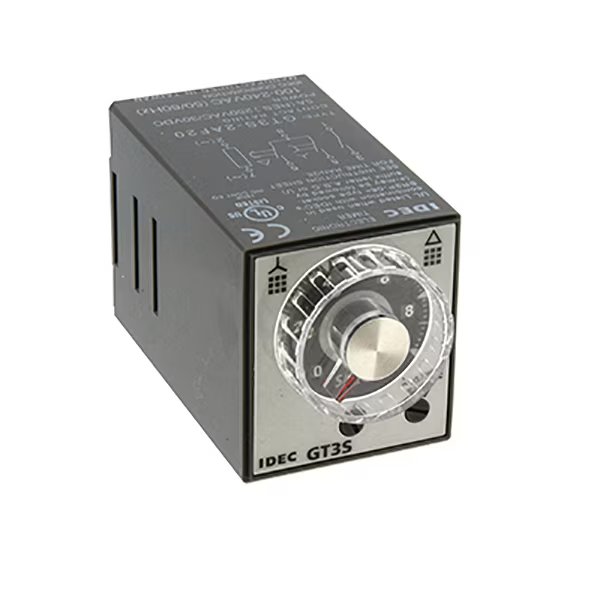

IDEC GT3S-2AF20 Multi-Function Timer 100-240VAC Pin Terminal

Product Code: GT3S-2AF20

  • Plug-in timer for easy installation
  • Wide voltage range: 100-240 VAC
  • Pin terminal type for secure connection
  • Insulation resistance of 100 MOhm
  • CE, cUL, and UL approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Multi - Function Timer
Brand
IDEC
Series
GT3

Electrical

Contact Type
Star:Delayed SPST-NO Delta: Delayed SPST-NO Instantaneous SPST-No
Timing Range
0.05s to 100s
Contact Configuration
Star: SPST-NO Delta:SPST-NO SPST-No
Rated Current (In)
5A
Rated Voltage (Ur)
100V to 240V AC

Dimensions & Physical Data

Depth
72.5mm
Height
40mm
Width
36mm

Environmental

IP Rating
IP40 (timer), IP20 (socket)
Ambient Temperature
-10°C to 50°C

Documents

IPD Product Catalogue V17
