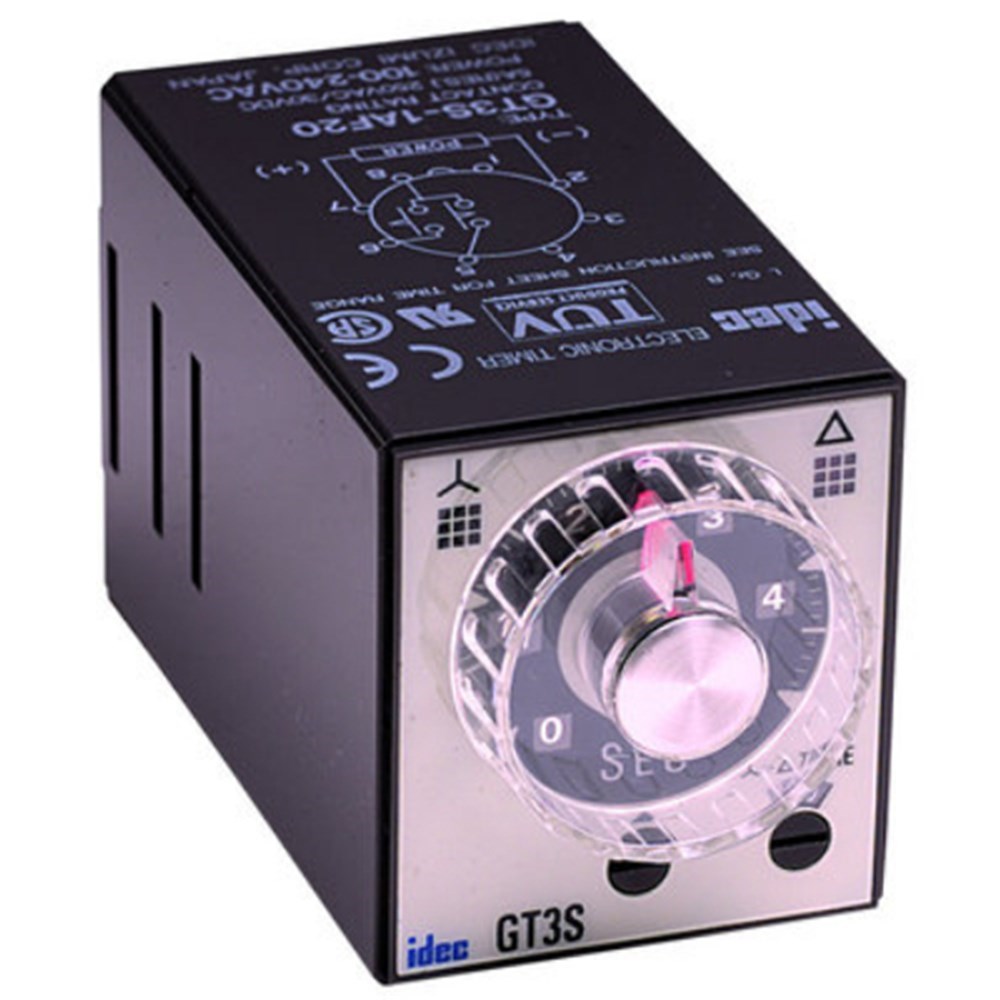

IDEC GT3S-1AF20 Multi-Function Timer SPST 100-240VAC Pin Terminal

Product Code: GT3S-1AF20

  • Versatile voltage range: 100-240 VAC
  • SPST contact configuration
  • Adjustable time range: 0.05 to 100 seconds
  • IP20/IP40 protection rating
  • Compliant with EN61812-1:2011 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Multi - Function Timer
Brand
IDEC
Series
GT3

Electrical

Contact Type
Star:Delayed SPST-NO Delta: Delayed SPST-NO
Timing Range
0.05s to 100s
Contact Configuration
Star :SPST-NO Delta:SPST-NO
Rated Current (In)
5A
Rated Voltage (Ur)
100V to 240V AC

Dimensions & Physical Data

Depth
72.5mm
Height
40mm
Width
36mm

Environmental

IP Rating
IP40 (timer), IP20 (socket)
Ambient Temperature
-10°C to 50°C

Documents

IPD Product Catalogue V17
