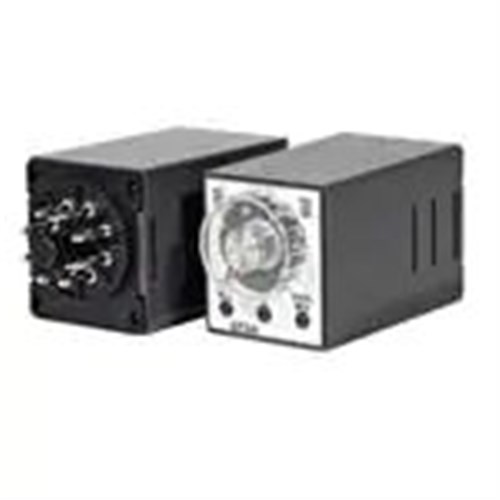

IDEC GT3F-2EAD24 Multi-Function Timer 24VDC Pin Terminal

Product Code: GT3F-2EAD24

  • Operates at 24 VDC
  • Pin terminal type for easy connection
  • Electrical life of 100,000 operations
  • Mechanical life up to 3 million operations
  • CE and UL approved for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Multi - Function Timer
Brand
IDEC
Series
GT3

Electrical

Contact Type
Delayed
Timing Range
0.1 s to 600h
Contact Configuration
DPDT
Rated Current (In)
3A
Rated Voltage (Ur)
24V AC/DC

Dimensions & Physical Data

Depth
72.2mm
Height
40mm
Width
36mm

Environmental

IP Rating
IP40 (timer), IP20 (socket)
Ambient Temperature
-10°C to 50°C

Documents

IPD Product Catalogue V17
