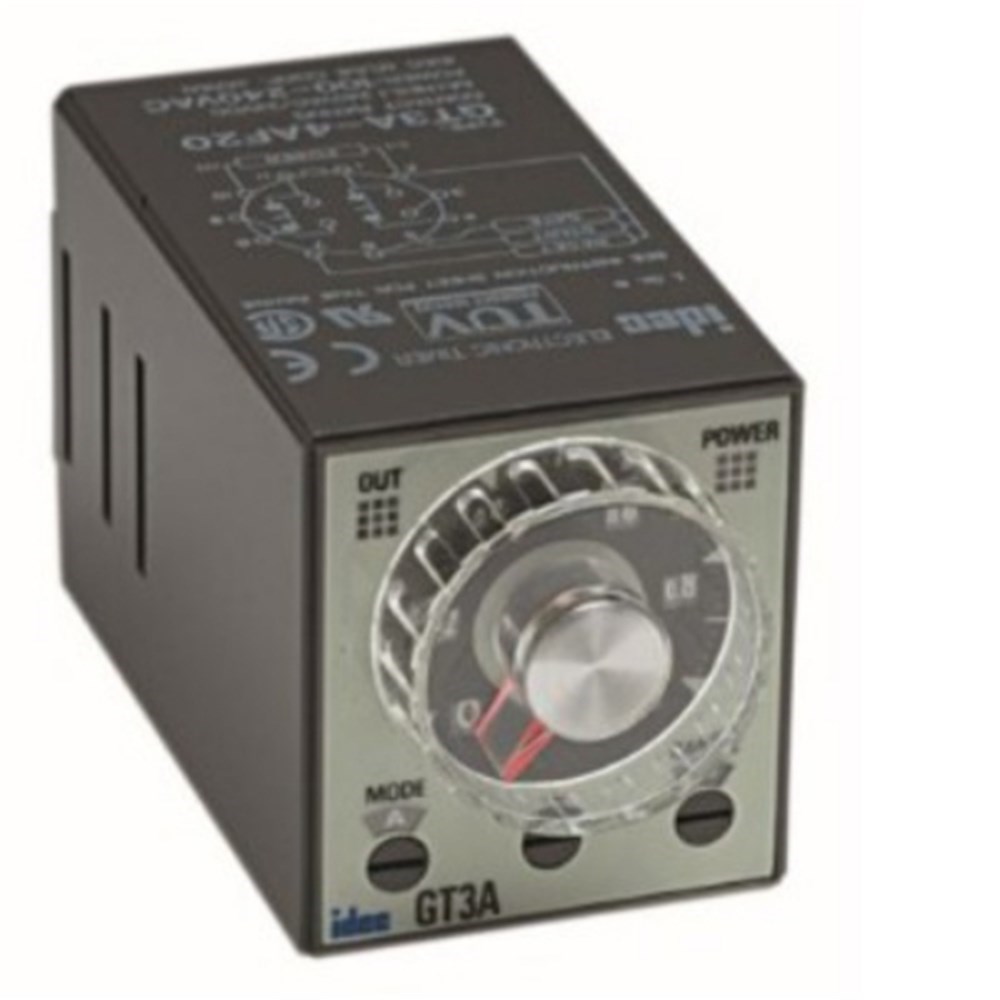

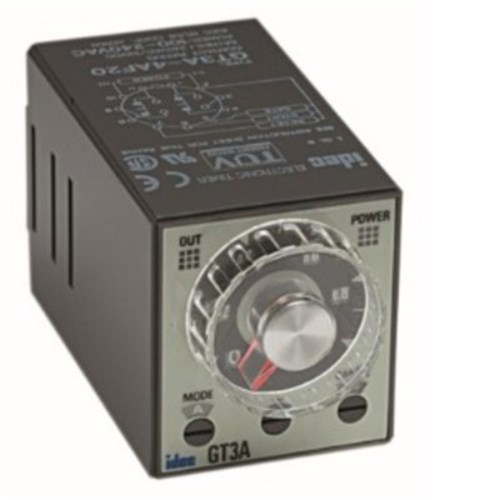

IDEC GT3A-2D12 Multi-Function Timer Delayed SPDT + Instantaneous SPDT 24VDC Pin Terminal

Product Code: GT3A-2D12

  • Plug-in timer with 24 VDC rated voltage
  • Features delayed and instant SPDT contacts
  • Operates in temperatures from -30 to 80°C
  • Insulation resistance of 100 MOhm
  • IP20/IP40 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Multi - Function Timer
Brand
IDEC
Series
GT3

Electrical

Contact Type
Delayed SPDT + Instantaneous SPDT
Timing Range
0.1s to 180h
Contact Configuration
2 SPDT
Rated Current (In)
5A
Rated Voltage (Ur)
12V DC

Dimensions & Physical Data

Depth
72.2mm
Height
40mm
Width
36mm

Environmental

IP Rating
IP40 (timer), IP20 (socket)
Ambient Temperature
-10°C to 50°C

Documents

IPD Product Catalogue V17
