Product Code: FT1A-M14KA-B

Supports Ladder, Function Block & Script languages
24 VDC Transistor Sink rated voltage
Operates from 0 to 55°C
IP66 protection rating
12-month warranty

Specifications

General

Product Type

Programmable Controller

Brand

IDEC

Series

SmartAXIS

Electrical

Analog Resolution 10bit	Channel Isolation Photocoupler isolated (Between output terminal and internal circuit)	Digital Inputs 8
Digital Outputs 6	No. of Analog Inputs 2	No. of Analog Outputs 2
No. of Digital Inputs 6	No. of Digital Outputs 4	Output Ratings 24V DC
Analog Outputs 2	Input Ratings 10 V DC	Input Type Transistor(Source)
Output Type Transistor	Power Consumption 10 W	Supply Voltage 24 V DC
Terminal Type Screw Terminal	Analog Inputs 2

Mechanical

Mounting Method

Panel Mount

Dimensions & Physical Data

Depth

58.9 mm

Height

77 mm

Width

116 mm

Environmental

Storage Temperature

-25 °C - 60 °C

Operating Temperature

0 °C - 55 °C

IP Rating

IP66F/IP20

Communication & Control

Ethernet Port Speed 10 Mbps/100 Mbps	Ethernet Ports 1	Expandable Communications 2
Fieldbus Interface 2	Serial Ports 2	USB Port 2
Supported Ethernet Protocols Modbus TCP	Supported Serial Protocols RS232C/RS485/RS422

Safety, Standards & Compliance

Compliance Standards

UL508 CSA C22.2 No.142 (c-UL)

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer Software Suit

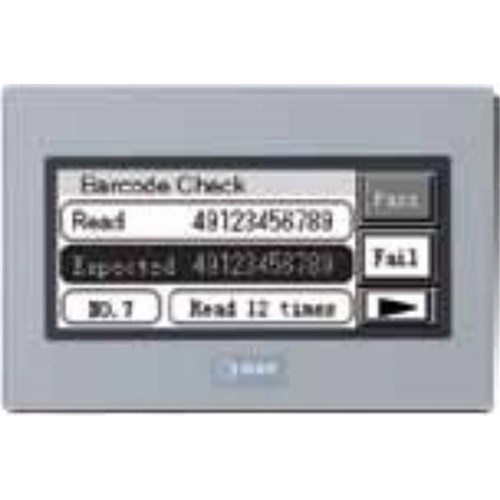

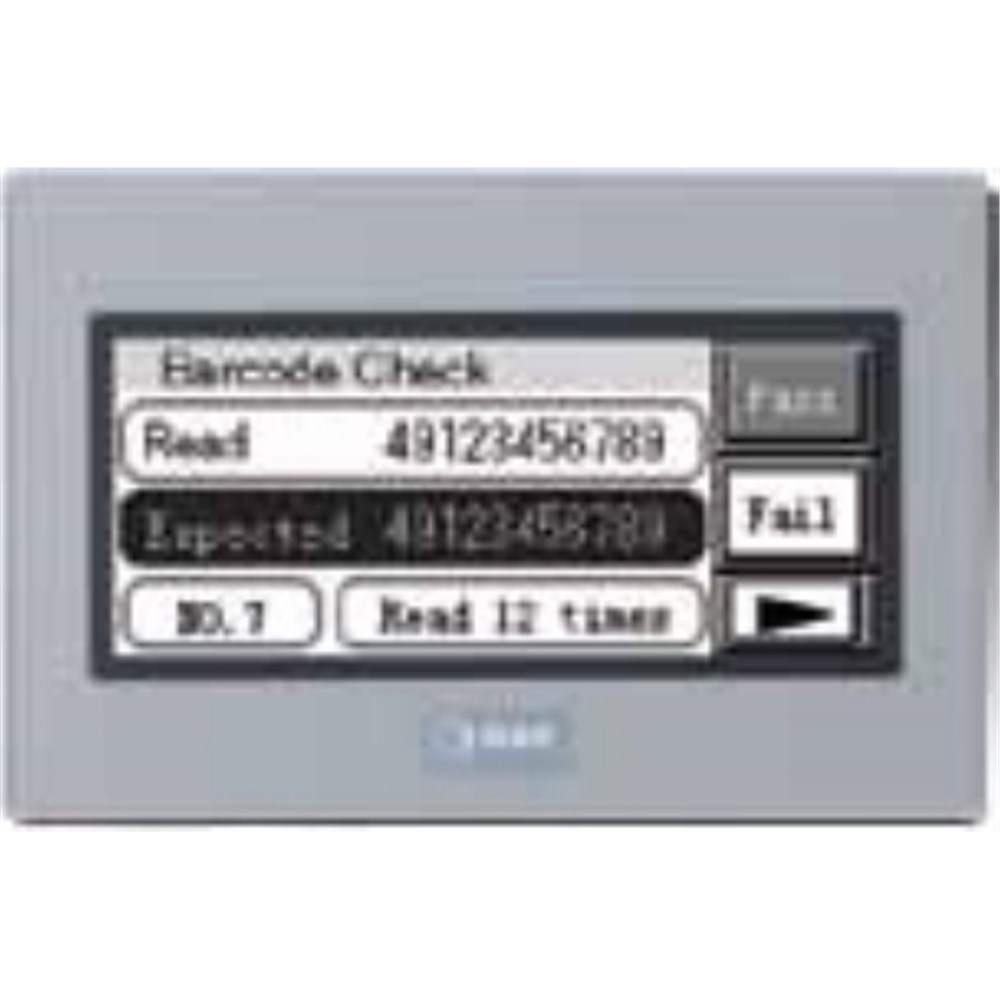

IDEC FT1A-M14KA-B Controller 24VDC Transistor Sink 14 Analogue Outputs
