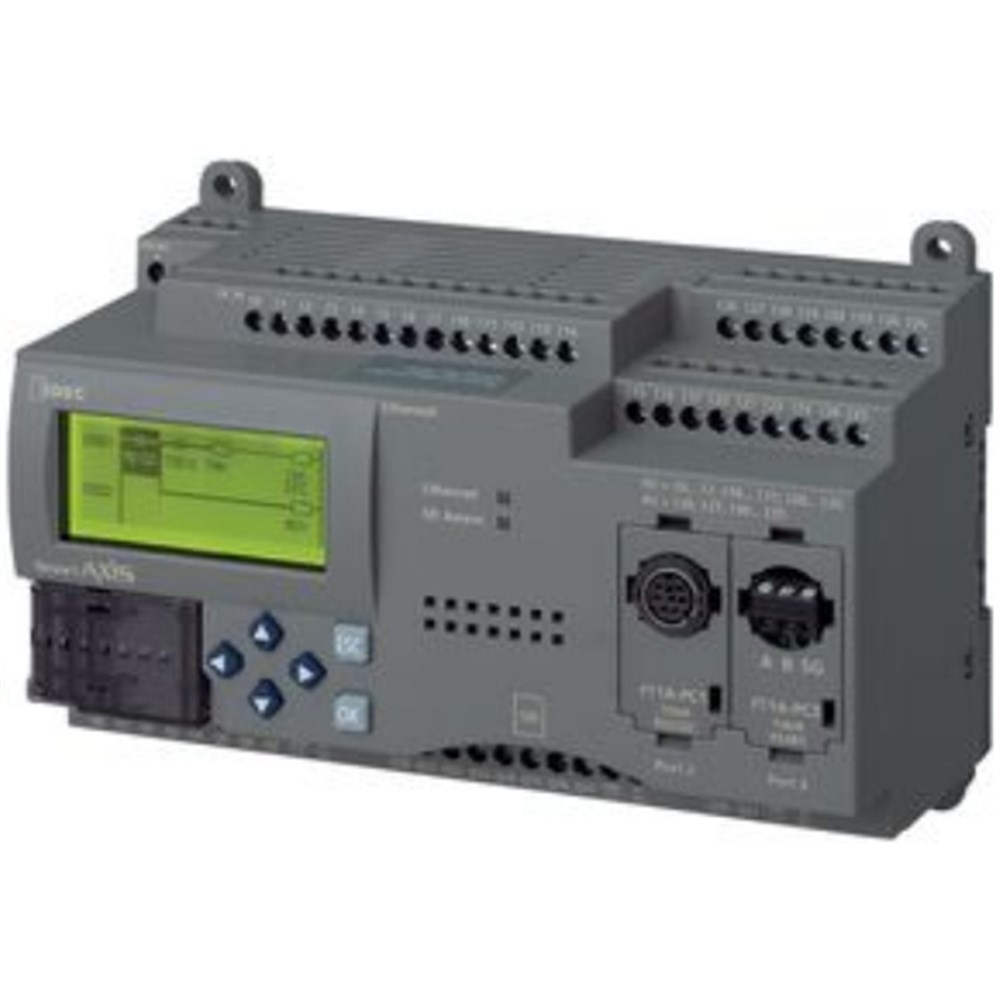

Product Code: FT1A-H48SA

Supports Ladder, Function Block, Script programming
12-month warranty for peace of mind
Operates at 24 VDC
Temperature range: 0 to 55°C

Specifications

General

Product Type

Programmable Controller

Brand

IDEC

Series

SmartAXIS

Electrical

Analog Resolution 10bit	Channel Isolation Photocoupler isolated (Between output terminal and internal circuit)	No. of Analog Inputs 8
No. of Digital Inputs 22	Output Ratings 24V DC	Input Ratings Digital: 24 V DC Analog: 10 V DC
Input Type Digital/Analog	Output Type Transistor	Power Consumption 6 W
Supply Voltage 24 V DC	Terminal Type Screw Terminal

Mechanical

Mounting Method

DIN Rail / Direct Mounting

Dimensions & Physical Data

Depth

78 mm

Height

90 mm

Width

160 mm

Environmental

Storage Temperature

-25 °C - 70 °C

Operating Temperature

0 °C - 55 °C

IP Rating

IP66F/IP20

Communication & Control

Ethernet Port Speed 10 Mbps/100 Mbps	Ethernet Ports 1	Expandable Communications 2
Fieldbus Interface 2	Serial Ports 2	USB Port 1
Supported Ethernet Protocols TCP/IP	Supported Serial Protocols RS232C/RS485/RS422

Safety, Standards & Compliance

Compliance Standards

UL508 CSA C22.2 No.142 (c-UL)

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer Software Suit

IDEC FT1A-H48SA CPU Base Module 24VDC 18 Analogue Outputs
