Product Code: FT1A-H48KA

Supports Ladder, Function Block & Script languages
12-month warranty for peace of mind
Operates efficiently at 24 VDC
Suitable for temperatures from 0 to 55°C

Specifications

General

Product Type

Programmable Controller

Brand

IDEC

Series

SmartAXIS

Electrical

Analog Resolution 10bit	Channel Isolation Photocoupler isolated (Between output terminal and internal circuit)	No. of Analog Inputs 8
No. of Digital Inputs 22	Output Ratings 24V DC	Input Ratings Digital: 24 V DC Analog: 10 V DC
Input Type Digital/Analog	Output Type Transistor	Power Consumption 6W
Supply Voltage 100V AC - 240V AC	Terminal Type Screw Terminal

Dimensions & Physical Data

Depth

78mm

Height

90mm

Width

160mm

Environmental

Storage Temperature

-25°C to 70°C

Operating Temperature

0°C to 55°C

IP Rating

IP66F/IP20

Communication & Control

Ethernet Port Speed 10 Mbps/100 Mbps	Ethernet Ports 1	Expandable Communications 2
Fieldbus Interface 2	Serial Ports 2	USB Port 1
Supported Ethernet Protocols TCP/IP	Supported Serial Protocols RS232C/RS485/RS422

Safety, Standards & Compliance

Hazardous Location Ratings

Class I Division 2

Certifications / Approvals

UL 508 CSA C22.2 No.142 (c-UL)

Accessories & Additional Information

Development Software

Automation Organizer Software Suit

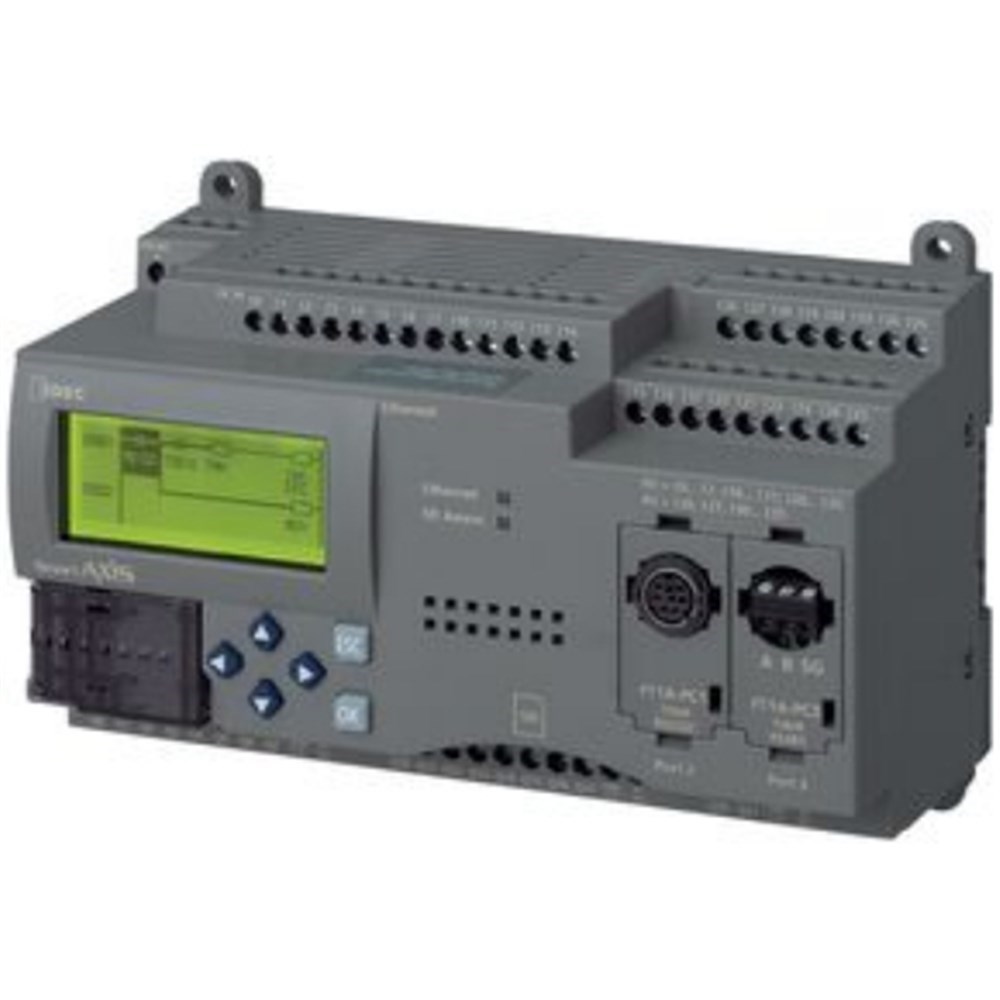

IDEC FT1A-H48KA CPU Base Module 24VDC 18 Analogue Outputs

Product Code: FT1A-H48KA
