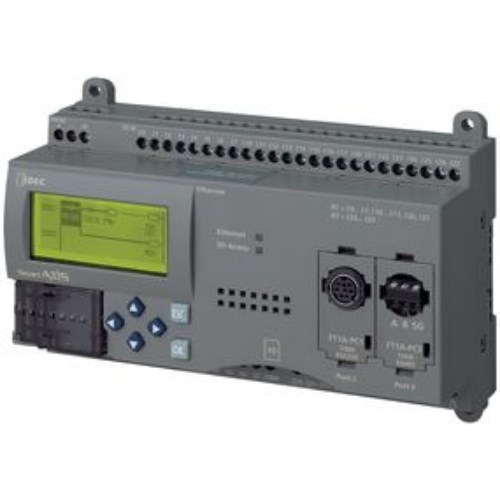

Product Code: FT1A-H40RKA

Supports Ladder, Function Block, Script programming
24 VDC rated voltage for efficient operation
Operates in temperatures from 0 to 55°C
Comes with a 12-month warranty

Specifications

General

Product Type

Programmable Controller

Brand

IDEC

Series

SmartAXIS

Electrical

Analog Resolution 10bit	No. of Analog Inputs 6	No. of Digital Inputs 18
Output Ratings 250V AC/10A 30V DC/10A 250V AC/2A 30V DC/2A	Input Ratings Digital: 24 V DC Analog: 10 V DC	Input Type Digital/Analog
Output Type Relay/Trasnsistor	Power Consumption 7.9W	Supply Voltage 24V DC
Terminal Type Screw Terminal

Dimensions & Physical Data

Depth

60mm

Height

90mm

Width

160mm

Environmental

Storage Temperature

-25°C to 70°C

Operating Temperature

0°C to 55°C

IP Rating

IP66F/IP20

Communication & Control

Ethernet Port Speed 10 Mbps/100 Mbps	Ethernet Ports 1	Expandable Communications 2
Fieldbus Interface 2	Serial Ports 2	USB Port 1
Supported Ethernet Protocols TCP/IP	Supported Serial Protocols RS232C/RS485/RS422

Safety, Standards & Compliance

Hazardous Location Ratings

Class I Division 2

Certifications / Approvals

UL 508 CSA C22.2 No.142 (c-UL)

Accessories & Additional Information

Development Software

Automation Organizer Software Suit

IDEC FT1A-H40RKA CPU Base Module 24VDC 16 Analogue Outputs

Product Code: FT1A-H40RKA
