Product Code: FT1A-H24RC

Supports Ladder, Function Block, Script programming
100-240 VAC rated voltage
Operates in 0 to 55°C temperature range
Includes 12-month warranty

Specifications

General

Product Type

Programmable Controller

Brand

IDEC

Series

SmartAXIS

Electrical

Analog Resolution 10bit	Digital Inputs 16	Digital Outputs 8
No. of Digital Inputs 16	Output Ratings 250V AC/10A 30V DC/10A 250V AC/2A 30V DC/2A	Input Ratings 12 V DC
Input Type Digital	Output Type Relay	Power Consumption 41 VA
Supply Voltage 100 V AC - 240 V AC	Terminal Type Screw Terminal	Analog Inputs 4

Mechanical

Mounting Method

DIN Rail / Direct Mounting

Dimensions & Physical Data

Depth

78 mm

Height

90 mm

Width

119 mm

Environmental

Storage Temperature

-25 °C - 70 °C

Operating Temperature

0 °C - 55 °C

IP Rating

IP66F/IP20

Communication & Control

Ethernet Port Speed 10 Mbps/100 Mbps	Ethernet Ports 1	Expandable Communications 1
Fieldbus Interface 1	Serial Ports 1	USB Port 1
Supported Ethernet Protocols TCP/IP	Supported Serial Protocols RS232C/RS485/RS422

Safety, Standards & Compliance

Compliance Standards

UL508 CSA C22.2 No.142 (c-UL)

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer Software Suit

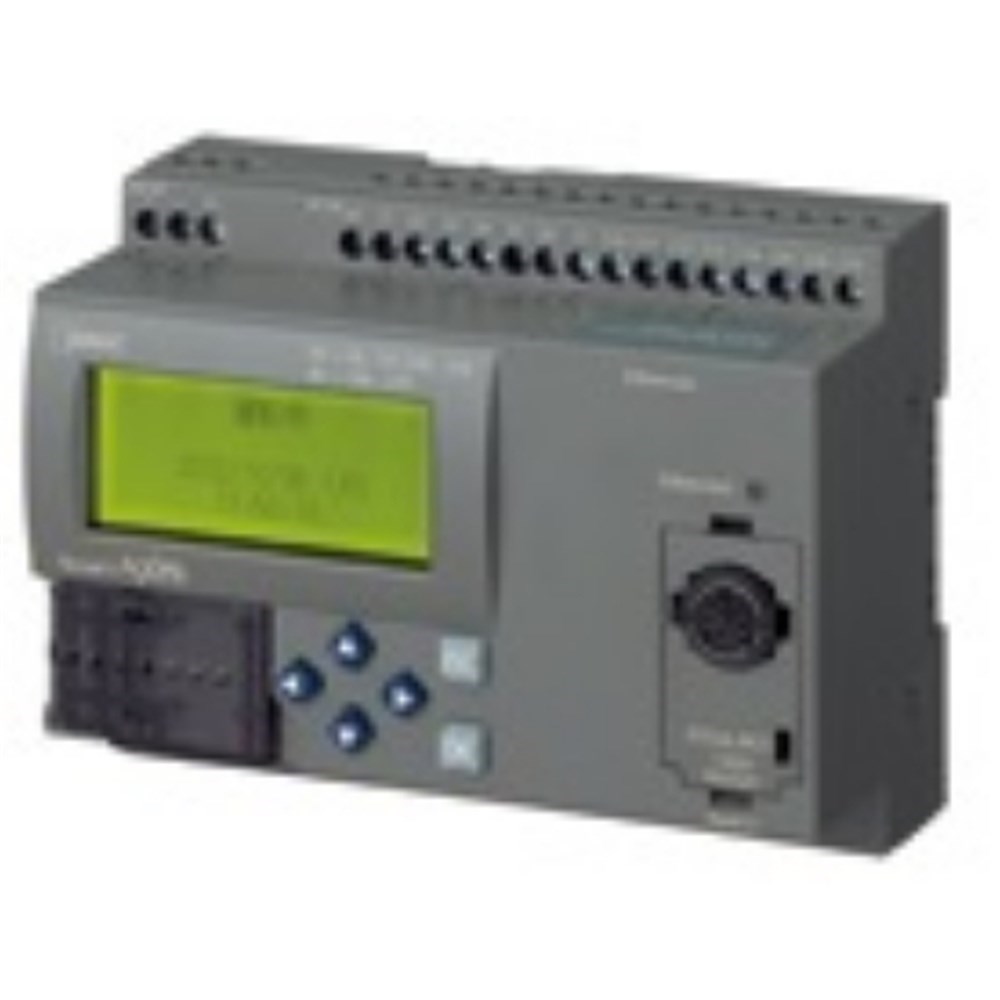

IDEC FT1A-H24RC CPU Base Module 100-240VAC 24 Analogue Outputs
