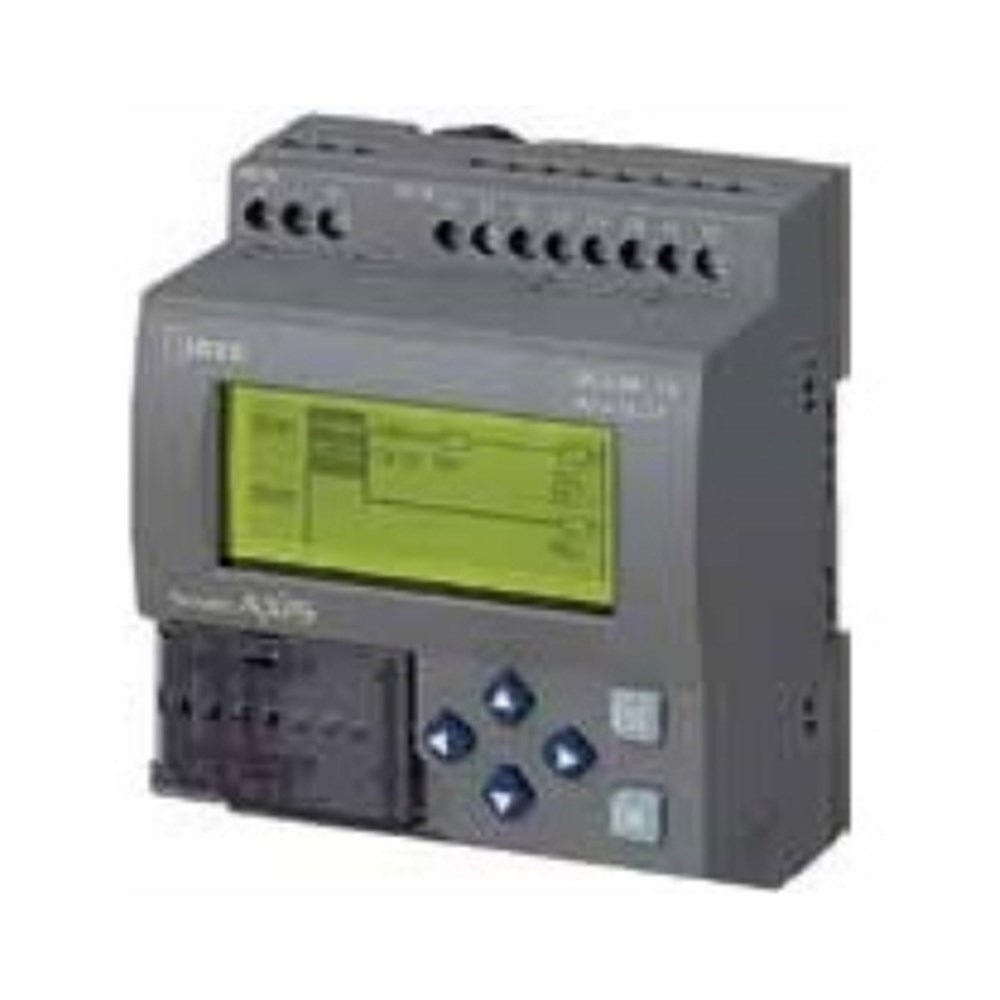

Product Code: FT1A-H12RA

Supports Ladder, Function Block & Script languages
Operates on 24 VDC rated voltage
Suitable for 0 to 55°C environments
Includes a 12-month warranty

Specifications

General

Product Type

Programmable Controller

Brand

IDEC

Series

SmartAXIS

Electrical

Analog Resolution 10bit	Digital Inputs 8	Digital Outputs 4
No. of Analog Inputs 2	No. of Digital Inputs 6	Output Ratings 250V AC/10A 30V DC/10A
Input Ratings Digital: 24 V DC Analog: 10 V DC	Input Type Digital/Analog	Output Type Relay
Power Consumption 4.3 W	Supply Voltage 24 V DC	Terminal Type Screw Terminal
Analog Inputs 2

Mechanical

Mounting Method

DIN Rail / Direct Mounting

Dimensions & Physical Data

Depth

60 mm

Height

90 mm

Width

76 mm

Environmental

Storage Temperature

-25 °C - 70 °C

Operating Temperature

0 °C - 55 °C

IP Rating

IP66F/IP20

Communication & Control

Ethernet Ports

Expandable Communications

Yes

USB Port

Safety, Standards & Compliance

Compliance Standards

UL508 CSA C22.2 No.142 (c-UL)

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer Software Suit

IDEC FT1A-H12RA CPU Base Module 24VDC 12 Analogue Outputs
