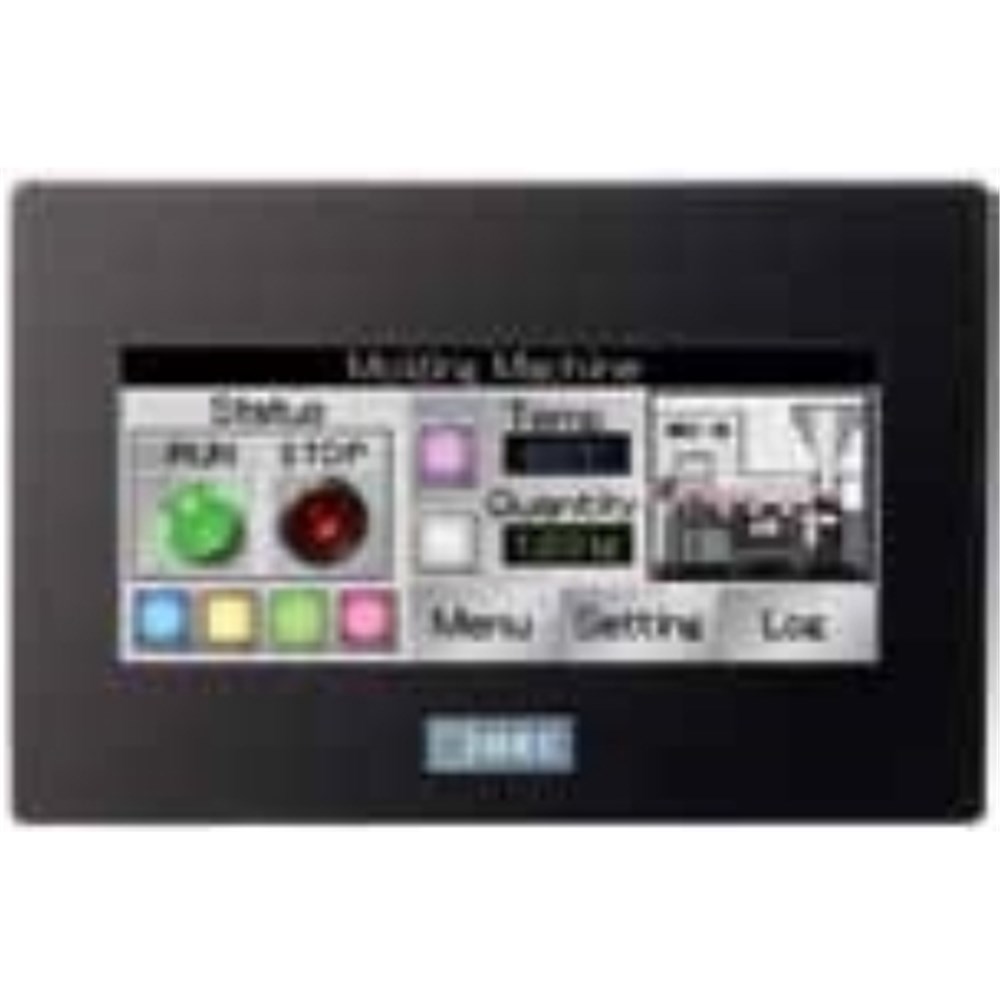

IDEC FT1A-C14SA-B Touch Screen 3.8 in TFT Colour LCD

Product Code: FT1A-C14SA-B

  • Integrated PLC and HMI in one unit
  • Compact 3.8" TFT colour LCD display
  • Operates efficiently from -20 to 55°C
  • High protection rating of IP66
  • 24 VDC transistor source output
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
HMI + PLC
Brand
IDEC
Series
SmartAXIS

Electrical

Analog Resolution
10-bit
Digital Inputs
8
Digital Outputs
6
Output Ratings
0 to 10V DC (voltage output) /4 to 20mA (current output)
Analog Outputs
2
Input Ratings
0 to 10V DC (voltage input) /4 to 20mA (current input)
Input Type
Sink
Output Type
Transistor Source
Power Consumption
10.1W
Supply Voltage
24V DC
Analog Inputs
2
Sunlight Readable
No (400cd/m²)
Touch Type
Analog resistive membrane

Mechanical

Mounting Method
Panel mount
Display Colour
65536 Colors

Dimensions & Physical Data

Display Size
3.8-inch

Environmental

Storage Temperature
–20 to 60°C
Operating Temperature
-20 to 55°C
IP Rating
IP66f (Panel front), IP20 (Rear)

Communication & Control

Ethernet Ports
1
Expandable Communications
Remote I/O, Analog Expansion Cartridges
Fieldbus Interface
Modbus TCP and Modbus RTU
Serial Ports
1
USB Port
2
Supported Ethernet Protocols
Modbus TCP, Remote Ethernet Communication
Supported Serial Protocols
Modbus RTU

Safety, Standards & Compliance

Compliance Standards
IEC/EN 61131-2, UL1007
Hazardous Location Ratings
Class I Division 2

Documents

IPD Product Catalogue V17
