Product Code: FT1A-B48SC

Supports Ladder, Function Block, Script languages
Operates at 100-240 VAC Transistor Sink
Temp range: 0 to 55°C for versatile use
Certified with CE, TUV, UL & Class I Div 2 standards
Includes a 12-month warranty

Specifications

General

Product Type

Programmable Controller

Brand

IDEC

Series

SmartAXIS

Electrical

Analog Resolution 10bit	Channel Isolation Photocoupler isolated (Between output terminal and internal circuit)	No. of Digital Inputs 30
Output Ratings 24V DC	Input Ratings 12 V DC	Input Type Digital
Output Type Transistor	Power Consumption 43 VA	Supply Voltage 100V AC - 240V AC
Terminal Type Screw Terminal

Dimensions & Physical Data

Depth

78mm

Height

90mm

Width

160mm

Environmental

Storage Temperature

-25°C to 70°C

Operating Temperature

0°C to 55°C

IP Rating

IP66F/IP20

Communication & Control

Ethernet Port Speed 10 Mbps/100 Mbps	Ethernet Ports 1	Expandable Communications 2
Fieldbus Interface 2	Serial Ports 2	USB Port 1
Supported Ethernet Protocols TCP/IP	Supported Serial Protocols RS232C/RS485/RS422

Safety, Standards & Compliance

Hazardous Location Ratings

Class I Division 2

Certifications / Approvals

UL 508 CSA C22.2 No.142 (c-UL)

Accessories & Additional Information

Development Software

Automation Organizer Software Suit

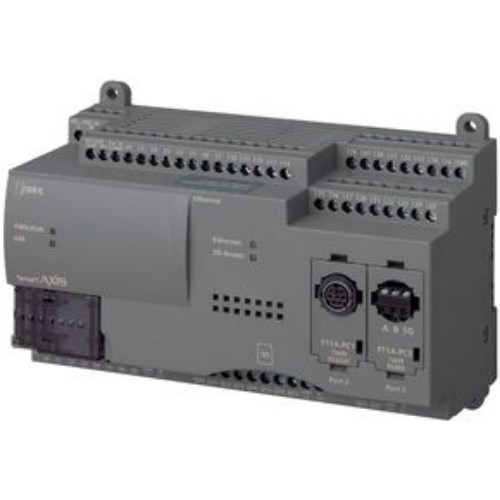

IDEC FT1A-B48SC CPU Base Module 100-240VAC Transistor Sink 18 Analogue Outputs

Product Code: FT1A-B48SC
