Product Code: FT1A-B48KC

Supports Ladder, Function Block, Script languages
Operates at 100-240 VAC Transistor Source
Temp range: 0 to 55°C for versatile use
CE, TUV, UL certified; Class I Div 2 compliant
Compact capacity of 47.4 kb

Specifications

General

Product Type

Programmable Controller

Brand

IDEC

Series

SmartAXIS

Electrical

Analog Resolution 10bit	Channel Isolation Photocoupler isolated (Between output terminal and internal circuit)	No. of Digital Inputs 30
Output Ratings 24V DC	Input Ratings 12 V DC	Input Type Digital
Output Type Transistor	Power Consumption 43 VA	Supply Voltage 100 V AC - 240 V AC
Terminal Type Screw Terminal

Mechanical

Mounting Method

DIN Rail / Direct Mounting

Dimensions & Physical Data

Depth

78 mm

Height

90 mm

Width

160 mm

Environmental

Storage Temperature

-25 °C - 70 °C

Operating Temperature

0 °C - 55 °C

IP Rating

IP66F/IP20

Communication & Control

Ethernet Port Speed 10 Mbps/100 Mbps	Ethernet Ports 1	Expandable Communications 2
Fieldbus Interface 2	Serial Ports 2	USB Port 1
Supported Ethernet Protocols TCP/IP	Supported Serial Protocols RS232C/RS485/RS422

Safety, Standards & Compliance

Compliance Standards

UL508 CSA C22.2 No.142 (c-UL)

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer Software Suit

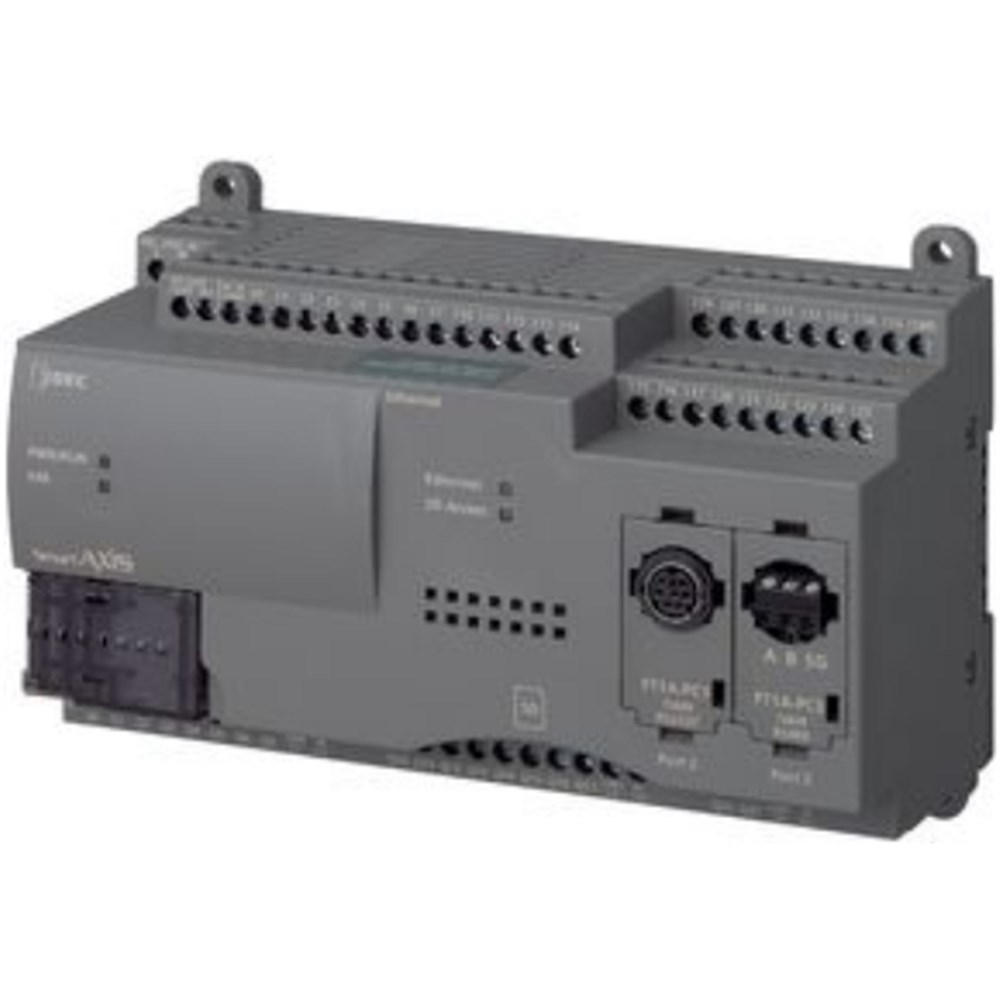

IDEC FT1A-B48KC CPU Base Module 100-240VAC Transistor Source 18 Analogue Outputs
