Product Code: FT1A-B48KA

Supports Ladder, Function Block & Script languages
24 VDC Transistor Sink Rated Voltage
Operates from 0 to 55°C
CE, TUV, UL certified; Class I Div 2 approved
47.4 kb capacity for programming

Specifications

General

Product Type

Programmable Controller

Brand

IDEC

Series

SmartAXIS

Electrical

Analog Resolution 10bit	Channel Isolation Photocoupler isolated (Between output terminal and internal circuit)	No. of Analog Inputs 8
No. of Digital Inputs 22	Output Ratings 24V DC	Input Ratings Digital: 24 V DC Analog: 10 V DC
Input Type Digital/Analog	Output Type Transistor	Power Consumption 7.9 W
Supply Voltage 24 V DC	Terminal Type Screw Terminal

Mechanical

Mounting Method

DIN Rail / Direct Mounting

Dimensions & Physical Data

Depth

60 mm

Height

90 mm

Width

160 mm

Environmental

Storage Temperature

-25 °C - 70 °C

Operating Temperature

0 °C - 55 °C

IP Rating

IP66F/IP20

Communication & Control

Ethernet Port Speed 10 Mbps/100 Mbps	Ethernet Ports 1	Expandable Communications 2
Fieldbus Interface 2	Serial Ports 2	USB Port 1
Supported Ethernet Protocols TCP/IP	Supported Serial Protocols RS232C/RS485/RS422

Safety, Standards & Compliance

Compliance Standards

UL508 CSA C22.2 No.142 (c-UL)

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer Software Suit

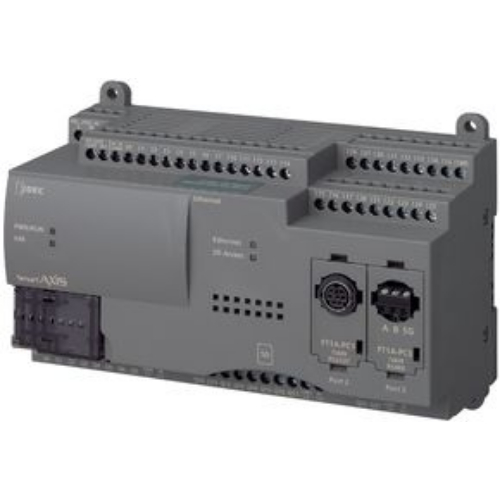

IDEC FT1A-B48KA CPU Base Module 24VDC Transistor Sink 18 Analogue Outputs
