Product Code: FT1A-B40RKA

Supports Ladder, Function Block, Script programming
Operates at 24 VDC Relay Sink
CE, TUV, UL certified for safety and reliability
Suitable for Class I Div 2 hazardous locations
Operational range: 0 to 55°C

Specifications

General

Product Type

Programmable Controller

Brand

IDEC

Series

SmartAXIS

Electrical

Analog Resolution 10bit	No. of Analog Inputs 6	No. of Digital Inputs 18
Output Ratings 250V AC/10A 30V DC/10A 250V AC/2A 30V DC/2A	Input Ratings Digital: 24 V DC Analog: 10 V DC	Input Type Digital/Analog
Output Type Relay/Trasnsistor	Power Consumption 7.9 W	Supply Voltage 24 V DC
Terminal Type Screw Terminal

Mechanical

Mounting Method

DIN Rail / Direct Mounting

Dimensions & Physical Data

Depth

60 mm

Height

90 mm

Width

160 mm

Environmental

Storage Temperature

-25 °C - 70 °C

Operating Temperature

0 °C - 55 °C

IP Rating

IP66F/IP20

Communication & Control

Ethernet Port Speed 10 Mbps/100 Mbps	Ethernet Ports 1	Expandable Communications 2
Fieldbus Interface 2	Serial Ports 2	USB Port 1
Supported Ethernet Protocols TCP/IP	Supported Serial Protocols RS232C/RS485/RS422

Safety, Standards & Compliance

Compliance Standards

UL508 CSA C22.2 No.142 (c-UL)

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer Software Suit

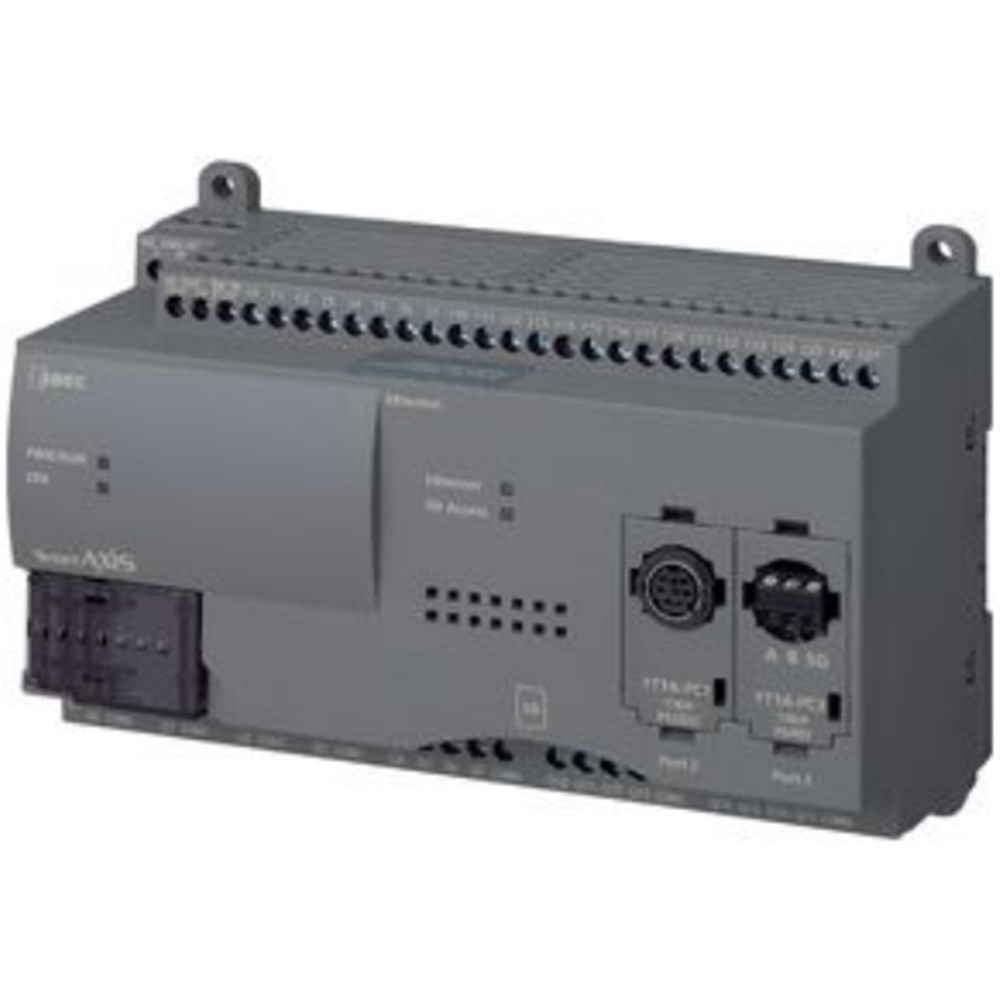

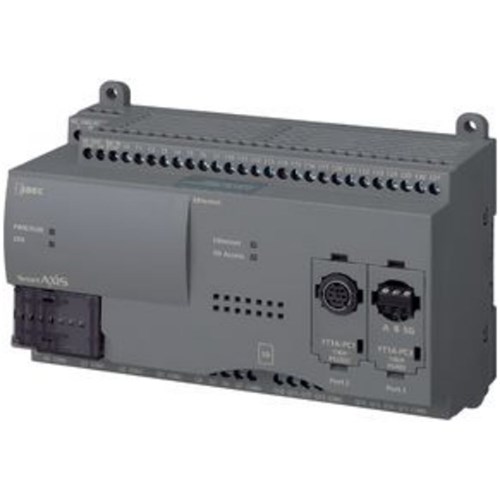

IDEC FT1A-B40RKA CPU Base Module 24VDC Relay Sink 16 Analogue Outputs
