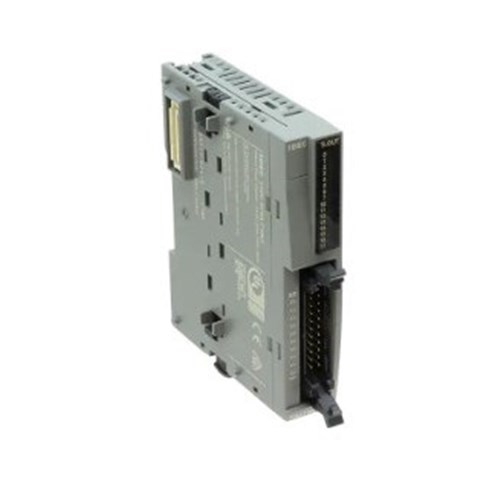

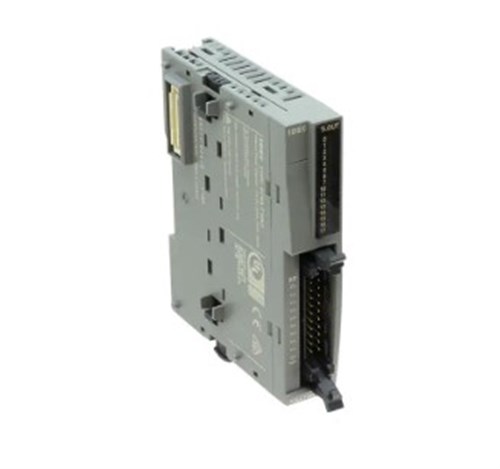

IDEC FC6A-T16K3 Digital Output Module

Product Code: FC6A-T16K3

  • 36-month warranty for peace of mind
  • MIL terminal type for secure connections
  • Operates in -25 to 65°C temperature range
  • Complies with CE, TUV, and UL standards
  • Suitable for Class I Div 2 hazardous locations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Expansion Module
Brand
IDEC
Series
FC6 A MicroSmart PLC

Electrical

Digital Inputs
0
Digital Outputs
16
Output Ratings
0.5A per point, 3A
Analog Outputs
0
Output Type
Transistor Sink
Power Consumption
0.8W
Supply Voltage
24V DC
Terminal Type
MIL Terminal
Analog Inputs
0

Dimensions & Physical Data

Depth
73mm
Height
90mm
Width
17.6mm

Environmental

Storage Temperature
-25°C to 70°C
Operating Temperature
-25°C to 65°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Division 2
Certifications / Approvals
CE, UL, TUV

Documents

IPD Product Catalogue V17
