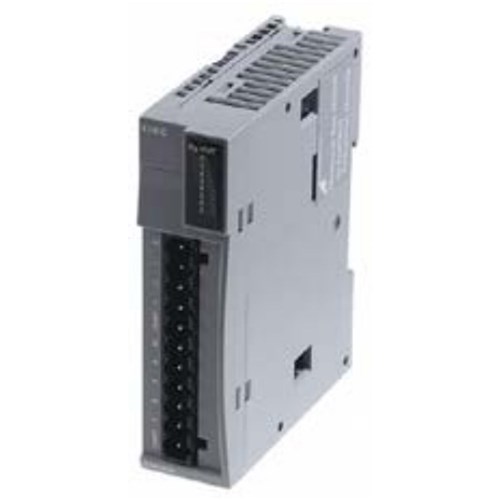

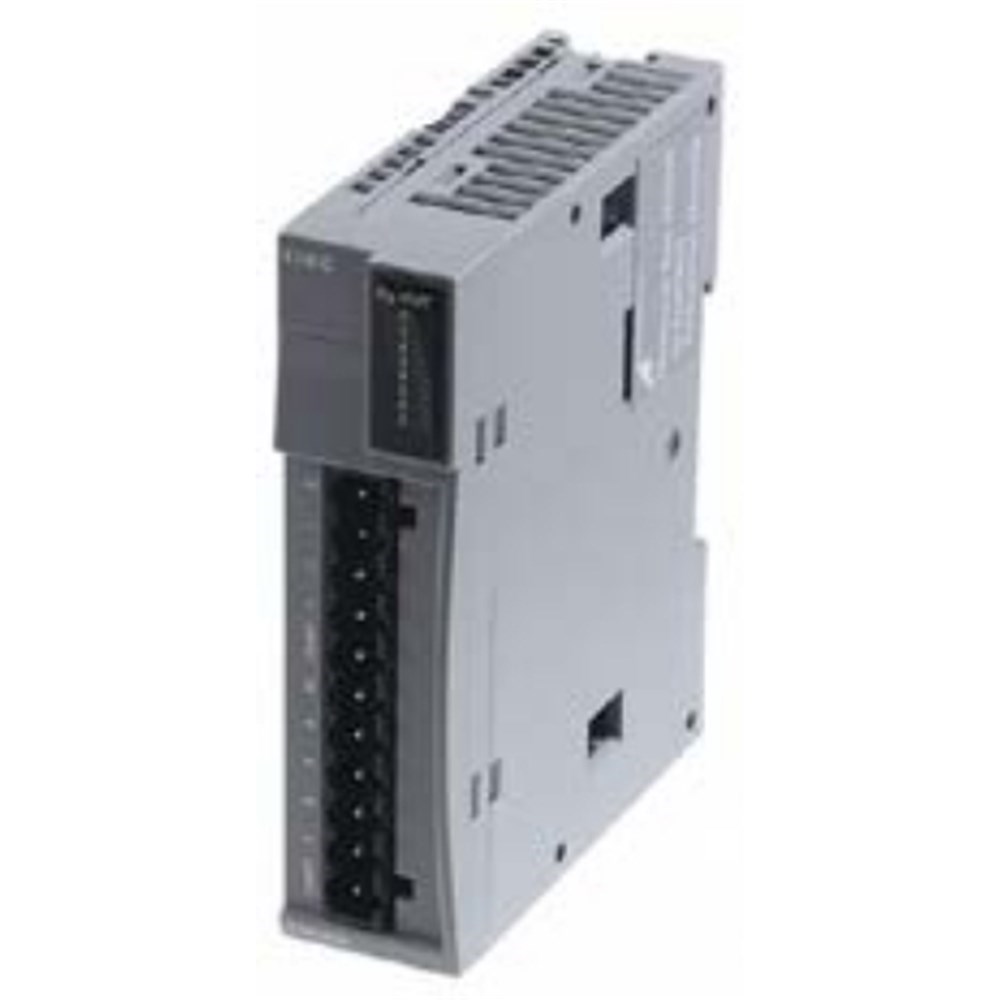

IDEC FC6A-T16K1 Digital Output Module 10-Pin

Product Code: FC6A-T16K1

  • 36-month warranty for peace of mind
  • Screw terminal type for secure connections
  • 3.81 mm terminal pitch
  • CE, TUV, UL certified for quality assurance
  • Class I Div 2 hazardous location approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Expansion Module
Brand
IDEC
Series
FC6A MicroSmart PLC

Electrical

Digital Outputs
16
No. of Analog Inputs
0
No. of Analog Outputs
0
No. of Digital Inputs
0
No. of Digital Outputs
16
Output Ratings
0.5A per point, 3A
Output Type
Transistor Sink
Power Consumption
0.80W
Supply Voltage
24V DC
Terminal Type
Screw Terminal

Mechanical

Mounting Method
DIN Rail/Panel

Dimensions & Physical Data

Depth
73.0 mm
Height
90.0 mm
Width
23.6 mm

Environmental

Storage Temperature
-25 to +70°C (no freezing)
Operating Temperature
-25 to 65?
IP Rating
IP20

Safety, Standards & Compliance

Compliance Standards
CE, UL, TUV
Hazardous Location Ratings
Class I Division 2
