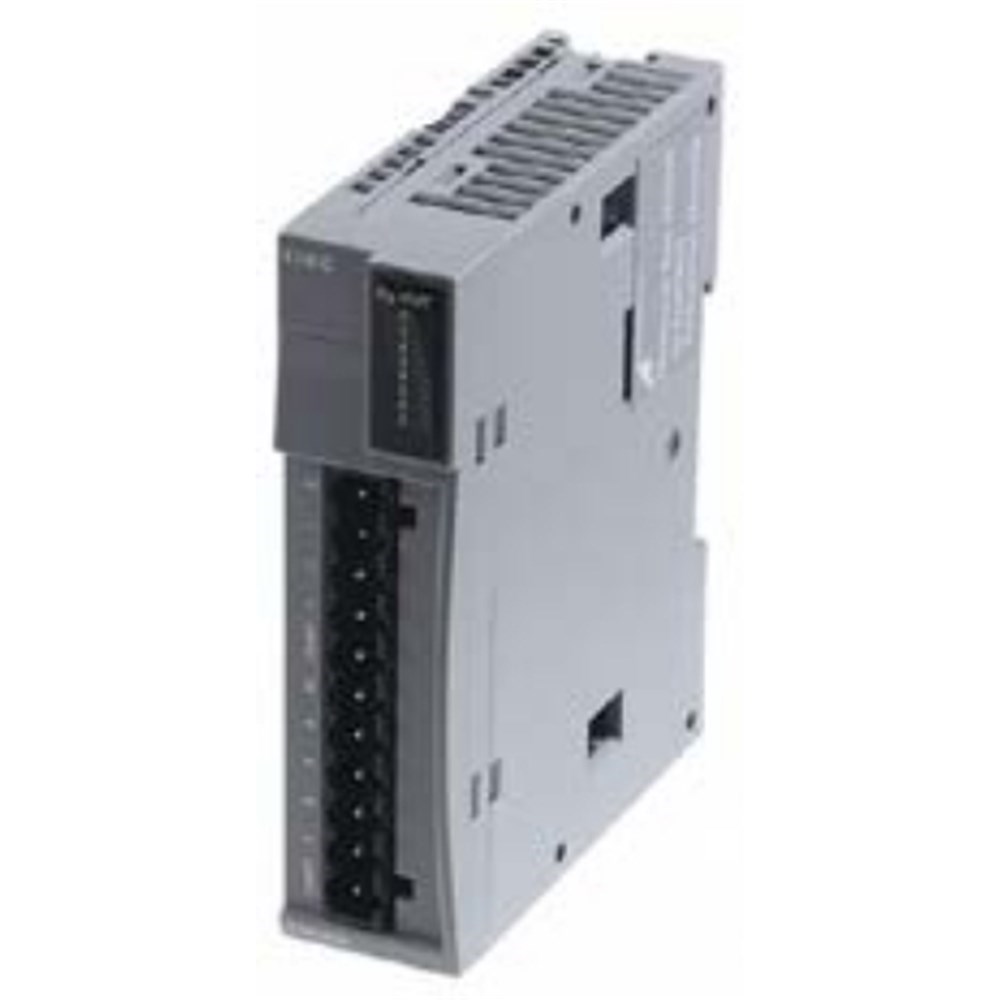

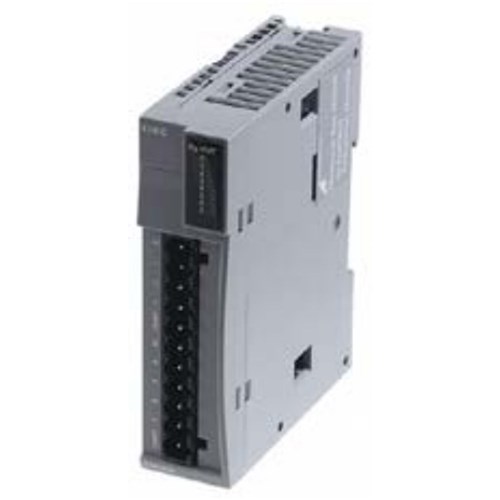

IDEC FC6A-R161 Digital Output Module 10-Pin

Product Code: FC6A-R161

  • Output Module with 36-month warranty
  • Screw terminal type for secure connections
  • Compact 3.81 mm terminal pitch
  • Certified: CE, TUV, UL, Class I Div 2
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Expansion Module
Brand
IDEC
Series
FC6A MicroSmart PLC

Electrical

Channel Isolation
1,500V AC
Digital Outputs
16
No. of Analog Inputs
0
No. of Analog Outputs
0
No. of Digital Inputs
0
No. of Digital Outputs
16
Output Ratings
240V AC 2A / 30V DC 2A
Output Type
Relay
Power Consumption
2.74W
Terminal Type
Screw Terminal

Mechanical

Mounting Method
DIN Rail/Panel

Dimensions & Physical Data

Depth
73.0 mm
Height
90.0 mm
Width
23.6 mm

Environmental

Storage Temperature
-25 to +70°C (no freezing)
Operating Temperature
-25 to 65?
IP Rating
IP20

Safety, Standards & Compliance

Compliance Standards
CE, UL, TUV
Hazardous Location Ratings
Class I Division 2
