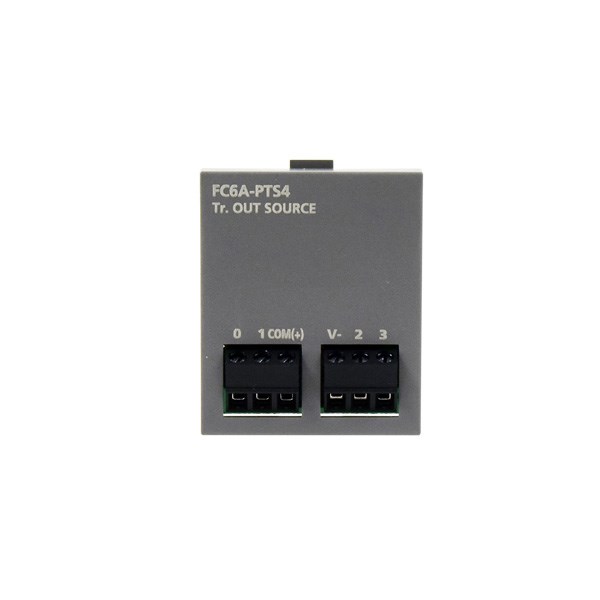

IDEC FC6A-PTS4 Digital Input/Output Cartridge 12-24VDC

Product Code: FC6A-PTS4

  • Supports 12-24 VDC rated voltage
  • Operates in -25 to 65°C temperature range
  • Certified for CE, TUV, UL standards
  • Class I Div 2 Hazardous Location approved
  • Comes with a 36-month warranty
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Expansion Cartridge
Brand
IDEC
Series
FC6 A MicroSmart PLC

Electrical

Digital Inputs
0
Digital Outputs
4
Output Ratings
12/24V DC; 0.1A per point
Analog Outputs
0
Output Type
Transistor Source
Power Consumption
0.1W
Supply Voltage
12/24V DC
Terminal Type
Push-in Terminal
Analog Inputs
0

Dimensions & Physical Data

Depth
12.5mm
Height
34.8mm
Width
17.8mm

Environmental

Storage Temperature
NA
Operating Temperature
-25°C to 65°C
IP Rating
NA

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Division 2
Certifications / Approvals
CE, UL, TUV

Accessories & Additional Information

Development Software
Automation Organizer

Documents

IPD Product Catalogue V17
