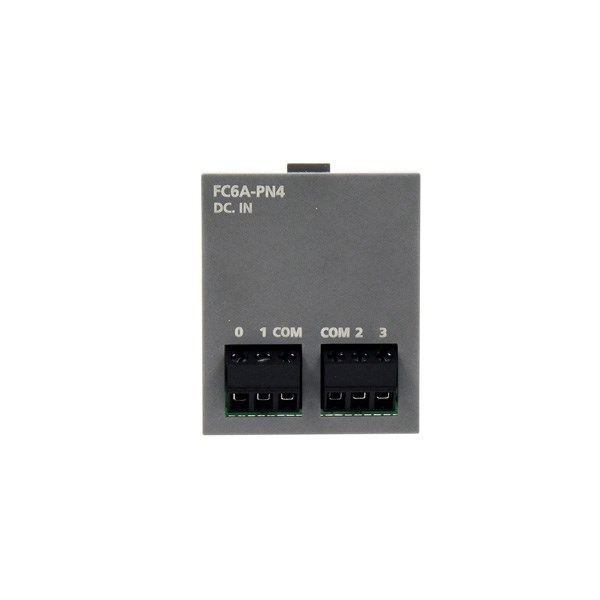

IDEC FC6A-PN4 Digital Input/Output Cartridge 12-24VDC

Product Code: FC6A-PN4

  • Suitable for 12-24 VDC systems
  • Operates from -25 to 65°C
  • Certified for hazardous locations
  • CE, TUV, and UL approved
  • 36-month warranty
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Expansion Cartridge
Brand
IDEC
Series
FC6 A MicroSmart PLC

Electrical

Digital Inputs
4
Digital Outputs
0
Analog Outputs
0
Input Ratings
12/24V DC (0 to 28.8V range); 5mA/pt at 24V
Input Type
Sink/Source
Power Consumption
0.1W
Supply Voltage
12/24V DC
Terminal Type
Push-in Terminal
Analog Inputs
0

Dimensions & Physical Data

Depth
12.5mm
Height
34.8mm
Width
17.8mm

Environmental

Storage Temperature
NA
Operating Temperature
-25°C to 65°C
IP Rating
NA

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Division 2
Certifications / Approvals
CE, UL, TUV

Accessories & Additional Information

Development Software
Automation Organizer

Documents

IPD Product Catalogue V17
