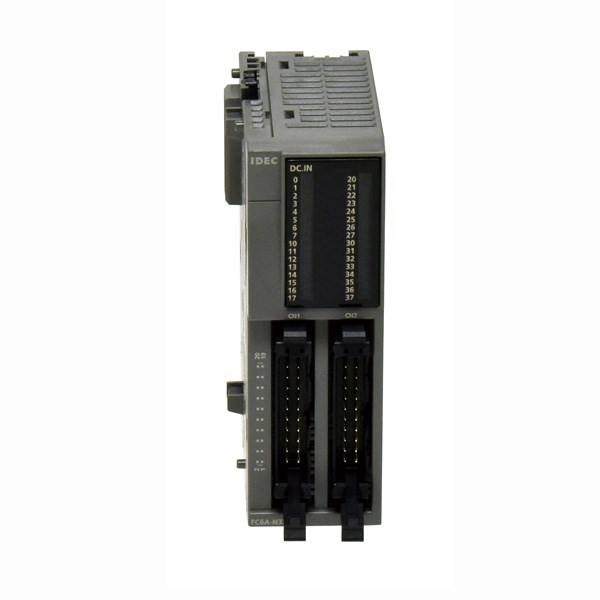

IDEC FC6A-N32B3 Expansion Module 24VDC 32 Digital Inputs

Product Code: FC6A-N32B3

  • 24 VDC rated voltage for reliable performance
  • MIL terminal type ensures secure connections
  • Operational temp range: -25 to 65°C
  • IP20 protection against solid objects
  • CE, TUV, and UL certified for safety and quality
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Expansion Module
Brand
IDEC
Series
FC6 A MicroSmart PLC

Electrical

Channel Isolation
Optocoupler-isolated circuit
Digital Inputs
32
Digital Outputs
0
Analog Outputs
0
Input Ratings
7 mA/pt
Input Type
24V DC sink/source
Power Consumption
0.44W
Supply Voltage
24V DC
Terminal Type
MIL Terminal
Analog Inputs
0

Dimensions & Physical Data

Depth
73mm
Height
90mm
Width
30mm

Environmental

Storage Temperature
-25°C to 70°C
Operating Temperature
-25°C to 65°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Division 2
Certifications / Approvals
CE, UL, TUV

Accessories & Additional Information

Development Software
WindLDR

Documents

IPD Product Catalogue V17
