Product Code: FC6A-N16B1

36-month warranty for peace of mind
Operates at 24 VDC with screw terminals
Suitable for -25 to 65°C environments
IP20 protection rating ensures safety
CE, TUV, UL certified for reliability

Specifications

General

Product Type

Expansion Module

Brand

IDEC

Series

FC6A MicroSmart PLC

Electrical

Channel Isolation Optocoupler-isolated circuit	Digital Inputs 16	Digital Outputs 0
No. of Analog Inputs 0	No. of Analog Outputs 0	No. of Digital Inputs 16
No. of Digital Outputs 0	Input Ratings 7 mA/pt	Input Type 24V DC sink/source
Power Consumption 0.27W	Supply Voltage 24V DC	Terminal Type Screw terminals

Mechanical

Mounting Method

DIN Rail/Panel

Dimensions & Physical Data

Depth

73.0 mm

Height

90.0 mm

Width

23.6 mm

Environmental

Storage Temperature

-25 to +70°C (no freezing)

Operating Temperature

-25 to 65?

IP Rating

IP20

Safety, Standards & Compliance

Compliance Standards

CE, UL, TUV

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

WindLDR

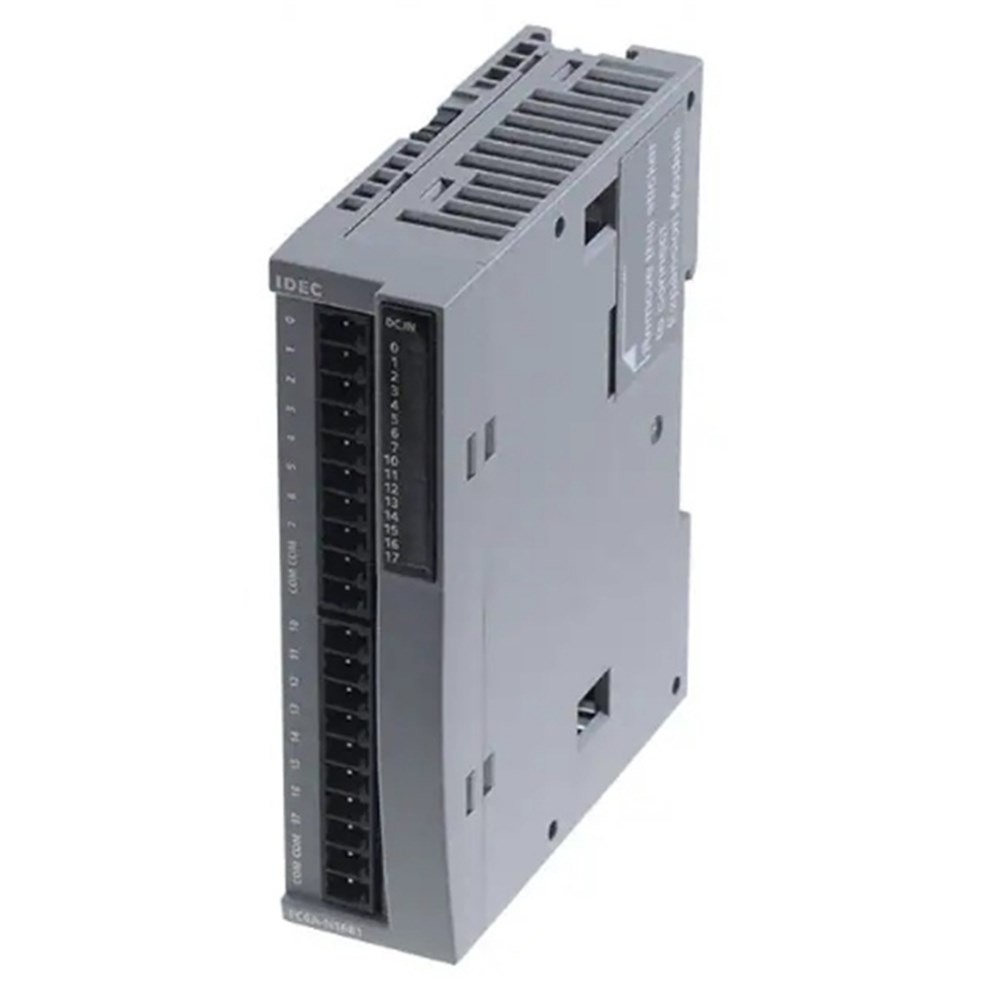

IDEC FC6A-N16B1 Expansion Module 24VDC 16 Digital Inputs 10-Pin

Product Code: FC6A-N16B1
