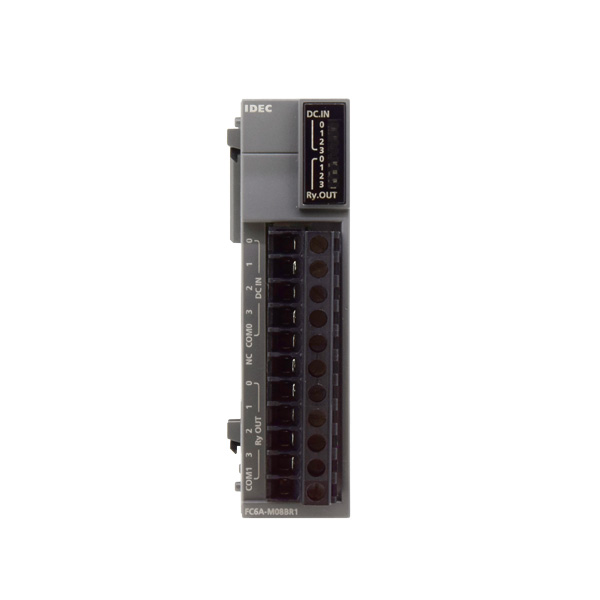

IDEC FC6A-M08BR1 Digital Input/Output Module 4 Digital Inputs

Product Code: FC6A-M08BR1

  • 36-month warranty for peace of mind
  • Screw terminal type for secure connections
  • Operates from -25 to 65°C
  • IP20 protection against solid objects
  • CE, TUV, UL certified for safety and quality
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Expansion Module
Brand
IDEC
Series
FC6 A MicroSmart PLC

Electrical

Channel Isolation
Photocoupler-isolated
Digital Inputs
4
Digital Outputs
4
Output Ratings
2A per point, 7A per common; 240V AC/30V DC resistive
Analog Outputs
0
Input Ratings
24V DC, 7mA/point; Range: 0-28.8V DC
Input Type
24V DC sink/source
Output Type
Relay
Power Consumption
0.8W
Terminal Type
Screw terminals
Analog Inputs
0

Dimensions & Physical Data

Depth
73mm
Height
90mm
Width
23.6mm

Environmental

Storage Temperature
-25°C to 70°C
Operating Temperature
-25°C to 65°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Division 2
Certifications / Approvals
CE, UL, TUV

Accessories & Additional Information

Development Software
WindLDR
