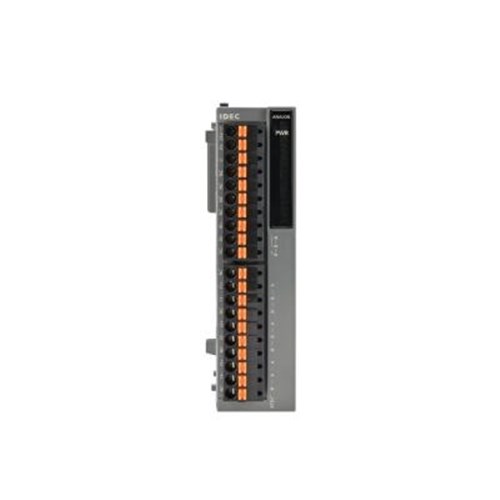

IDEC FC6A-L06A4 Analog Input/Output Module 0-10VDC

Product Code: FC6A-L06A4

  • 36-month warranty for peace of mind
  • Handles 0-10 VDC and 0-20 mA, 4-20 mA signals
  • Easy push-in terminal connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Expansion Module
Brand
IDEC
Series
FC6 A MicroSmart PLC

Electrical

Analog Resolution
12 bit
Digital Inputs
0
Digital Outputs
0
Output Ratings
0 to 10 V DC, -10 to 10 V DC, 0 to 20 mA, 4 to 20 mA
Analog Outputs
2
Input Ratings
4-20 mA
Input Type
Current
Output Type
Voltage, current
Supply Voltage
24V DC
Terminal Type
Push-in Terminal
Analog Inputs
4

Dimensions & Physical Data

Depth
73mm
Height
90mm
Width
17.6mm

Environmental

Storage Temperature
-25°C to 70°C
Operating Temperature
-10°C to 55°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Div 2
Certifications / Approvals
CE, UL, TÜV

Accessories & Additional Information

Development Software
Automation Organizer / WindLDR

Documents

IPD Product Catalogue V17
