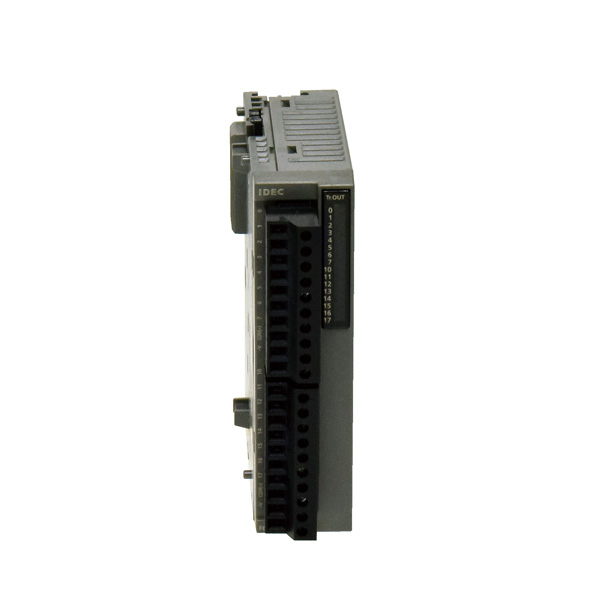

IDEC FC6A-L06A1 Analog Input/Output Module 0-10VDC

Product Code: FC6A-L06A1

  • 36-month warranty for peace of mind
  • Supports 0-10 VDC and 0-20/4-20 mA signals
  • Screw terminals for secure connections
  • Operates in -25 to 65°C environments
  • IP20 rated for basic protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Expansion Module
Brand
IDEC
Series
FC6 A MicroSmart PLC

Electrical

Analog Resolution
12-bit
Digital Inputs
0
Digital Outputs
0
Output Ratings
V/I (1kO min / 300O max)
Analog Outputs
2
Input Ratings
Voltage 0-10V, -10 to +10V (1MO max); Current 0-20mA, 4-20mA (50O max)
Input Type
Voltage/Current
Output Type
Voltage/Current
Power Consumption
0.37W
Supply Voltage
24V DC
Terminal Type
Screw terminals
Analog Inputs
4

Dimensions & Physical Data

Depth
73mm
Height
90mm
Width
23.6mm

Environmental

Storage Temperature
-25°C to 70°C
Operating Temperature
-25°C to 65°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Division 2
Certifications / Approvals
CE, UL, TUV

Accessories & Additional Information

Development Software
Automation Organizer / WindLDR
