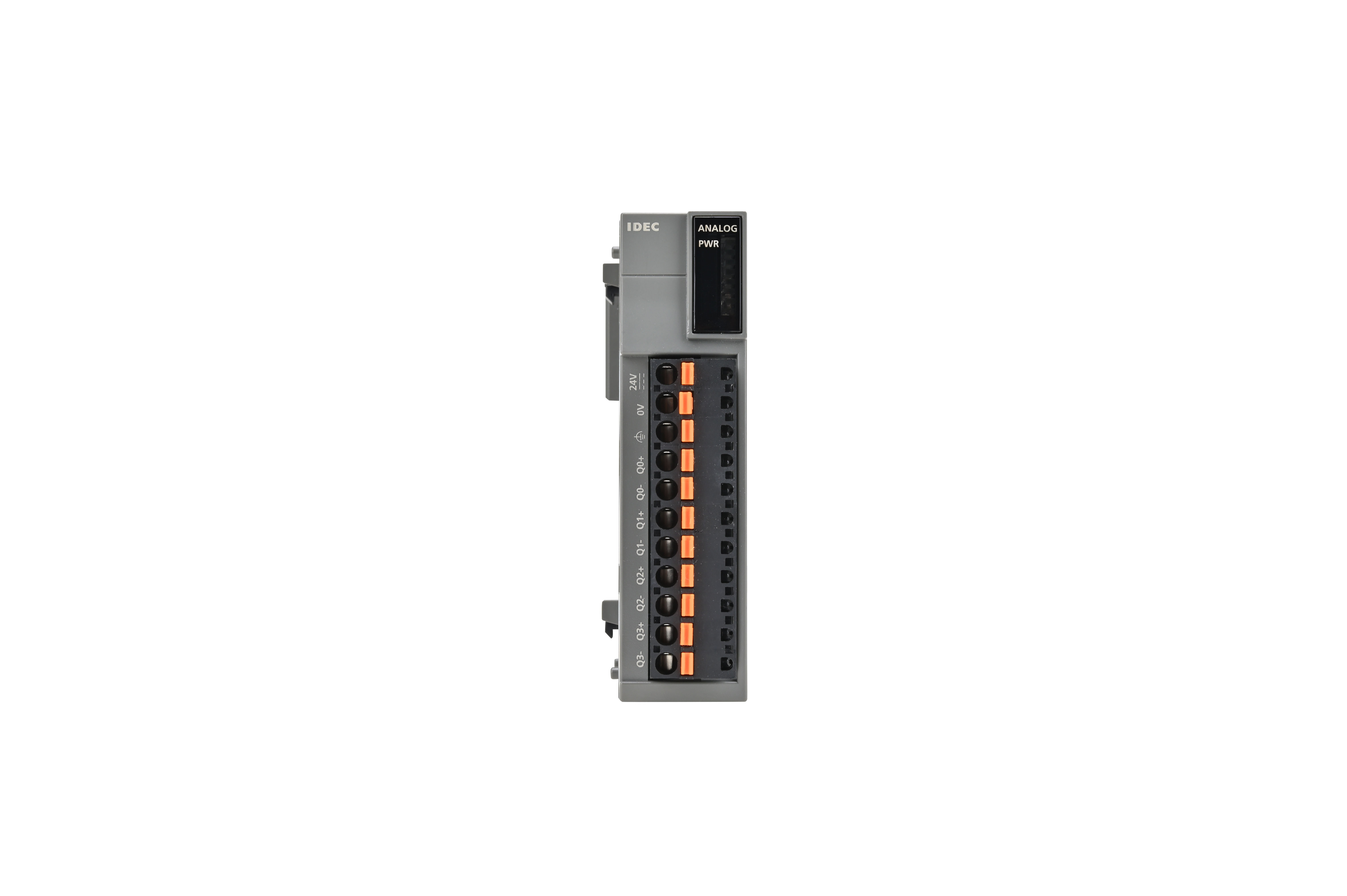

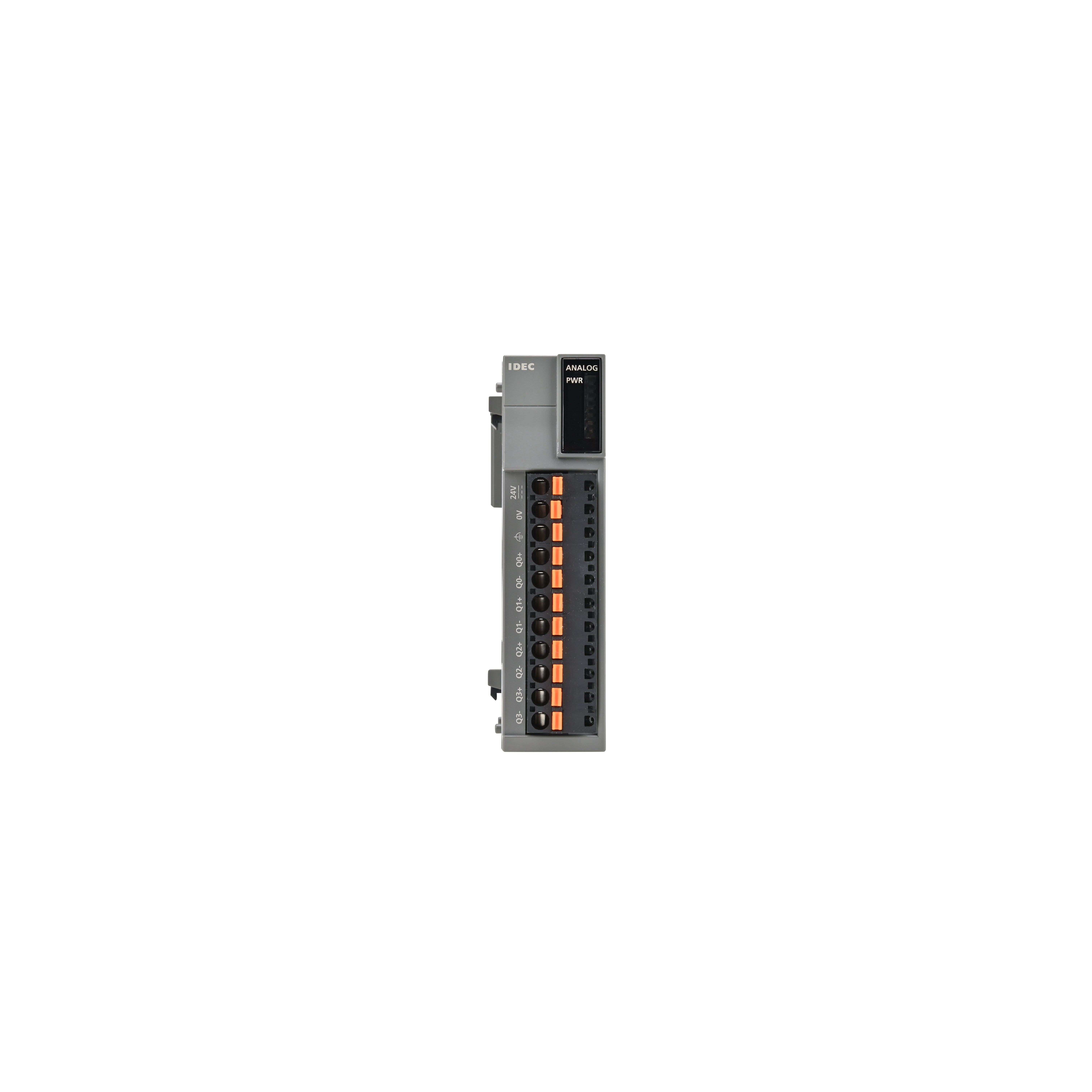

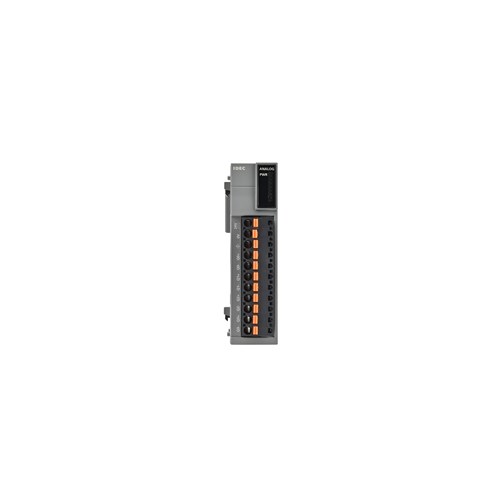

IDEC FC6A-K4A4 Analog Output Module 0-10VDC

Product Code: FC6A-K4A4

  • 36-month warranty for peace of mind
  • Supports 0-10 VDC and 0-20 mA, 4-20 mA signals
  • Push-in terminals for easy installation
  • CE, TUV, UL certified for safety compliance
  • Suitable for Class I Div 2 hazardous locations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Expansion Module
Brand
IDEC
Series
FC6 A MicroSmart PLC

Electrical

Analog Resolution
12 bit
Digital Inputs
0
Digital Outputs
0
Output Ratings
4-20 mA
Analog Outputs
4
Output Type
Current
Supply Voltage
24V DC
Terminal Type
Push-in Terminal
Analog Inputs
0

Dimensions & Physical Data

Depth
73mm
Height
90mm
Width
23.6mm

Environmental

Storage Temperature
-25°C to 70°C
Operating Temperature
-10°C to 55°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Div 2
Certifications / Approvals
CE, UL, TÜV

Documents

IPD Product Catalogue V17
