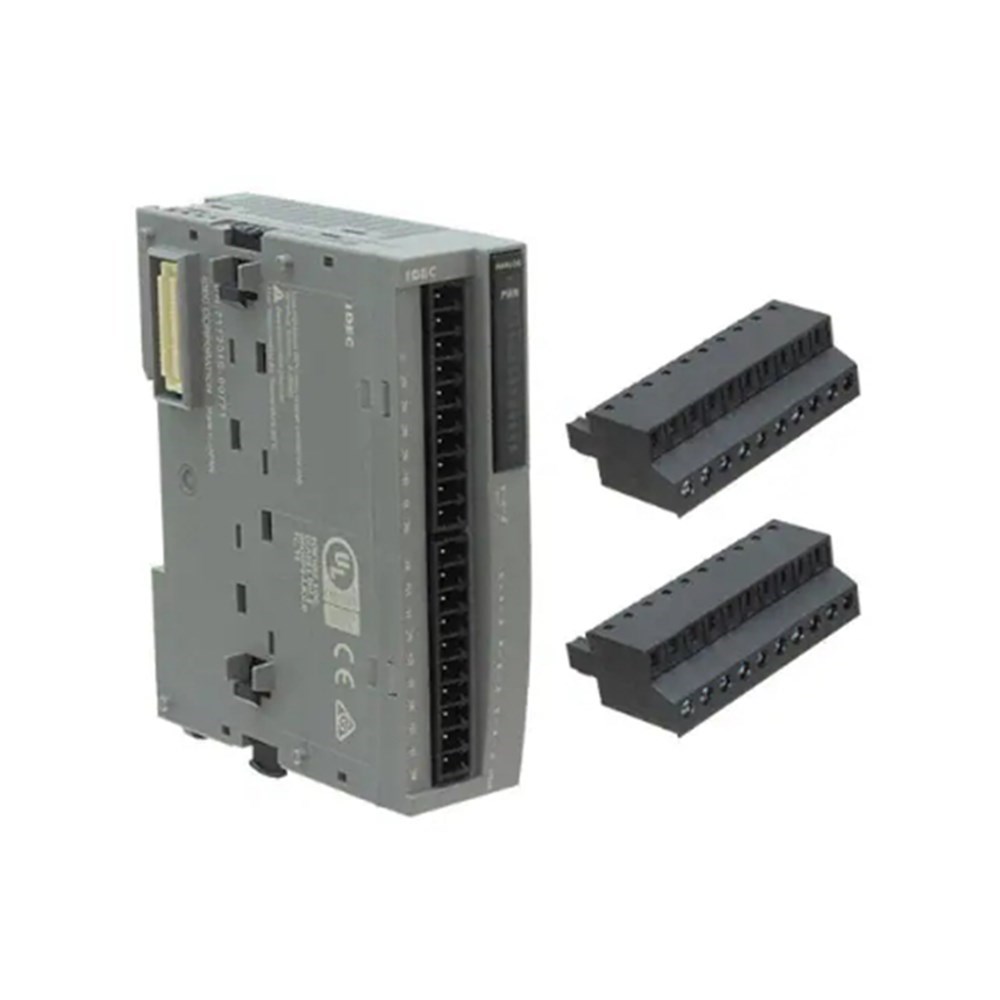

IDEC FC6A-J8A1 Analog Input Module 0-10VDC 8 Digital Inputs 10-Pin

Product Code: FC6A-J8A1

  • 36-month warranty for peace of mind
  • Supports 0-10 VDC, 0-20 mA, and 4-20 mA inputs
  • Push-in terminal type for easy installation
  • IP20 protection against solid objects
  • CE, TUV, UL certified; Class I Div 2 approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Expansion Module
Brand
IDEC
Series
FC6 A MicroSmart PLC

Electrical

Analog Resolution
12-bit
Channel Isolation
Photocoupler-isolated
No. of Analog Inputs
8
Input Ratings
Voltage 0-10V, -10 to +10V (1MO max); Current 0-20mA, 4-20mA (50O max); Overload: 13V/40mA.
Input Type
Voltage/Current
Power Consumption
0.27W
Supply Voltage
24V DC
Terminal Type
Screw terminals
Analog Inputs
8

Dimensions & Physical Data

Depth
73mm
Height
90mm
Width
17.6mm

Environmental

Storage Temperature
-25°C to 70°C
Operating Temperature
-25°C to 65°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Division 2
Certifications / Approvals
CE, UL, TUV

Accessories & Additional Information

Development Software
Automation Organizer / WindLDR

Documents

IPD Product Catalogue V17
