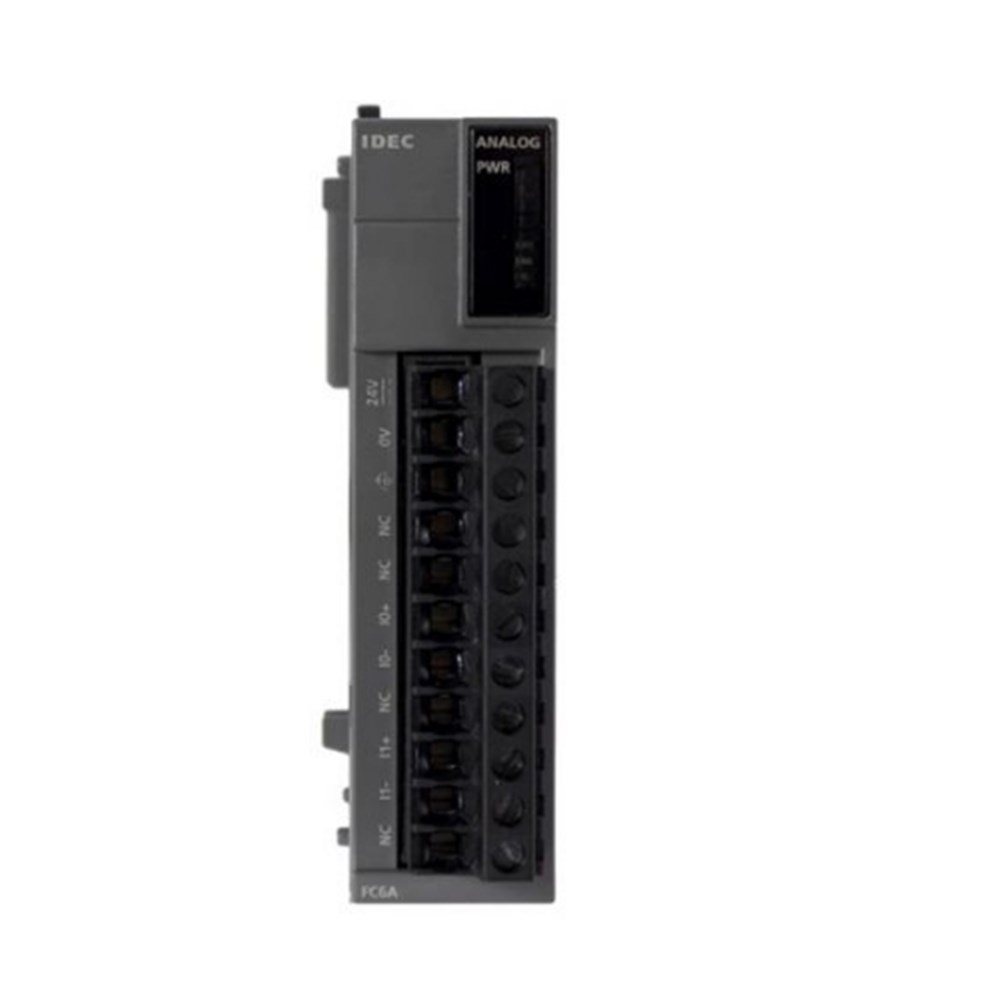

Product Code: FC6A-J4A1

Input module with 0-10 VDC rated voltage
Supports 0-20 mA and 4-20 mA current ranges
Secure screw terminal connections
IP20 protection rating for safety
CE, TUV, UL certified for quality assurance

Specifications

General

Product Type

Expansion Module

Brand

IDEC

Series

FC6A MicroSmart PLC

Electrical

Analog Resolution 12-bit	Digital Inputs 0	Digital Outputs 0
Analog Outputs 0	Input Ratings Voltage 0-10V, -10 to +10V (1MO max); Current 0-20mA, 4-20mA (50O max); Overload: 13V/40mA.	Input Type Voltage/Current
Power Consumption 0.30W	Supply Voltage 24V DC	Terminal Type Screw terminals
Analog Inputs 4

Mechanical

Mounting Method

DIN Rail/Panel

Dimensions & Physical Data

Depth

73.0 mm

Height

90.0 mm

Width

17.6 mm

Environmental

Storage Temperature

-25 to +70°C

Operating Temperature

-25 to 65?

IP Rating

IP20

Safety, Standards & Compliance

Compliance Standards

CE, UL, TUV

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer / WindLDR

IDEC FC6A-J4A1 Analog Input Module 0-10VDC 4 Digital Inputs 10-Pin

Product Code: FC6A-J4A1
