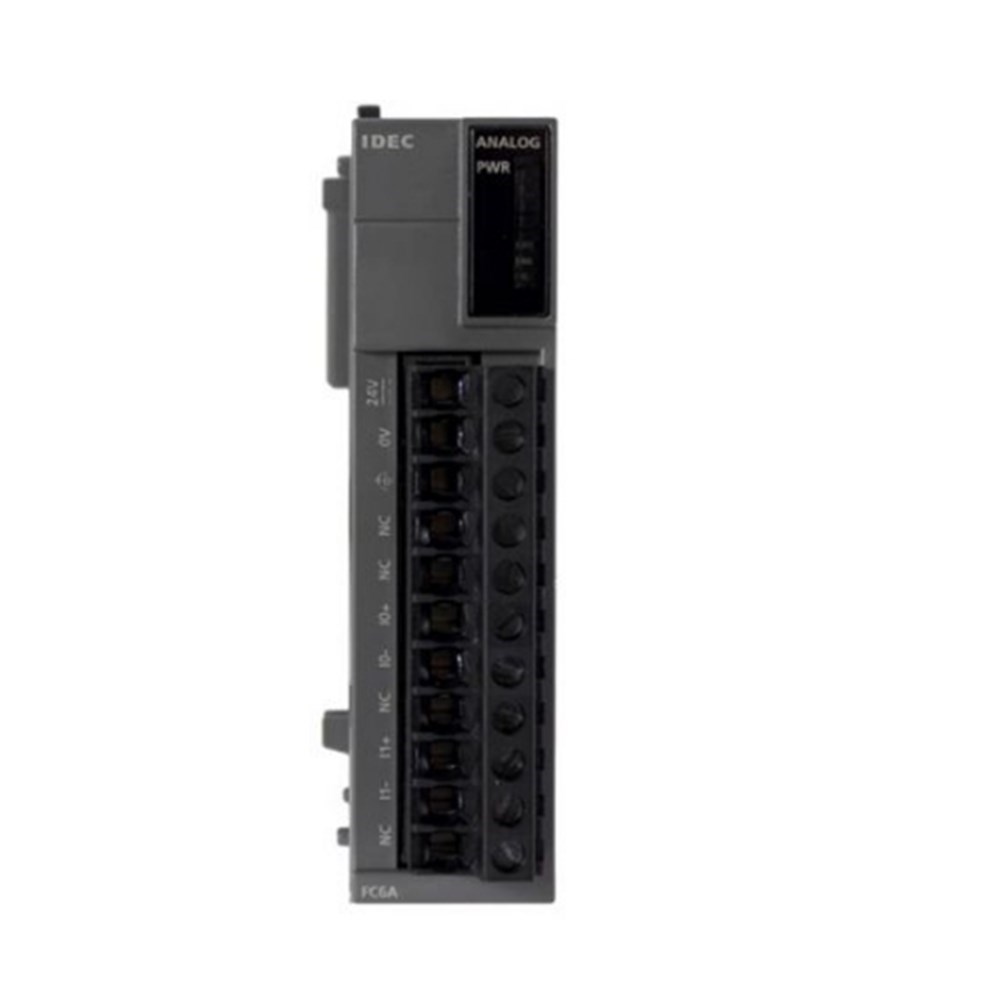

IDEC FC6A-J2C1 Analog Input Module 0-10VDC 2 Digital Inputs 11-Pin

Product Code: FC6A-J2C1

  • 36-month warranty for peace of mind
  • Supports 0-10 VDC input voltage
  • Handles 0-20 mA and 4-20 mA current ranges
  • Secure screw terminal connections
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Expansion Module
Brand
IDEC
Series
FC6 A MicroSmart PLC

Electrical

Analog Resolution
16-bit
Digital Inputs
0
Digital Outputs
0
Analog Outputs
0
Input Ratings
Voltage 0-10V, -10 to +10V (1MO max); Current 0-20mA, 4-20mA (50O max); Overload: 13V/40mA
Input Type
Voltage/Current
Power Consumption
0.27W
Supply Voltage
24V DC
Terminal Type
Screw terminals
Analog Inputs
2

Dimensions & Physical Data

Depth
73mm
Height
90mm
Width
23.6mm

Environmental

Storage Temperature
-25°C to 70°C
Operating Temperature
-25°C to 65°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Division 2
Certifications / Approvals
CE, UL, TUV

Accessories & Additional Information

Development Software
Automation Organizer / WindLDR
