Specifications

Product Type

Expansion Module

Brand

IDEC

Series

FC6 A MicroSmart PLC

Analog Resolution 12000 increments	Channel Isolation Photocoupler-isolated	Output Ratings 5A 250V AC/30V DC (Resistive load); 3A 250V AC (Inductive load cos ø=0.4); 3A 30V DC (Resistive load L/R=7ms)
Analog Outputs 2	Input Ratings Thermocouple (external resistance 100O max), Resistance Thermometer (3-wire type), Current (input impedance 50O), and Voltage (input impedance 100kO to 1MO minimum depending on range)	Input Type Thermocouple (K, J, R, S, B, E, T, N, PL-II, C), Resistance Thermometer (Pt100, JPt100), Current (0 to 20 mA DC, 4 to 20 mA DC), and Voltage (0 to 1V DC, 0 to 5V DC, 1 to 5V DC, 0 to 10V DC)
Output Type Relay output	Power Consumption 3.6W	Supply Voltage 24V DC (External power), 5V DC (Internal power)
Terminal Type Screw terminal	Analog Inputs 2

Depth

73mm

Height

90mm

Width

39.2mm

Storage Temperature

-25°C to 70°C

Operating Temperature

-25°C to 65°C

IP Rating

IP20

Hazardous Location Ratings

Class I Division 2

Certifications / Approvals

CE, UL, TUV

Development Software

Automation Organizer / WindLDR

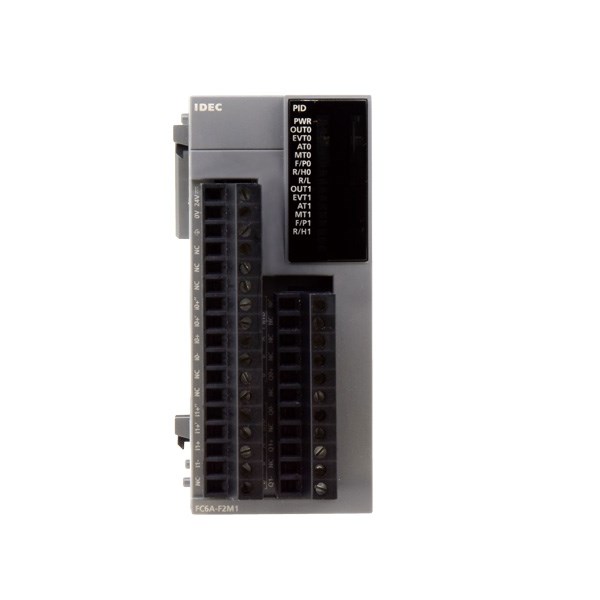

IDEC FC6A-F2MR1 PID Module
