Specifications

Product Type

Expansion Module

Brand

IDEC

Series

FC6 A MicroSmart PLC

Analog Resolution 1000 steps, 12000 increments	Channel Isolation Photocoupler-isolated	No. of Analog Inputs 2
No. of Analog Outputs 2	Output Ratings Non-contact voltage: 12V DC ±15%, 40 mA maximum; Analog current: 4 to 20 mA DC, 550O maximum load resistance	Analog Outputs 2
Input Ratings hermocouple (external resistance 100O max), Resistance Thermometer (3-wire type), Current (input impedance 50O), and Voltage (input impedance 100kO to 1MO minimum depending on range)	Input Type Thermocouple (K, J, R, S, B, E, T, N, PL-II, C), Resistance Thermometer (Pt100, JPt100), Current (0 to 20 mA DC, 4 to 20 mA DC), and Voltage (0 to 1V DC, 0 to 5V DC, 1 to 5V DC, 0 to 10V DC)	Output Type Non-contact voltage output (for SSR drive) or Analog current output (4 to 20 mA DC)
Power Consumption 3.6W	Supply Voltage 24V DC (External power), 5V DC (Internal power)	Terminal Type Screw Terminals
Analog Inputs 2

Depth

73mm

Height

90mm

Width

39.2mm

Storage Temperature

-25°C to 70°C

Operating Temperature

-25°C to 65°C

IP Rating

IP20

Hazardous Location Ratings

Class I Division 2

Certifications / Approvals

CE, UL, TUV

Development Software

Automation Organizer / WindLDR

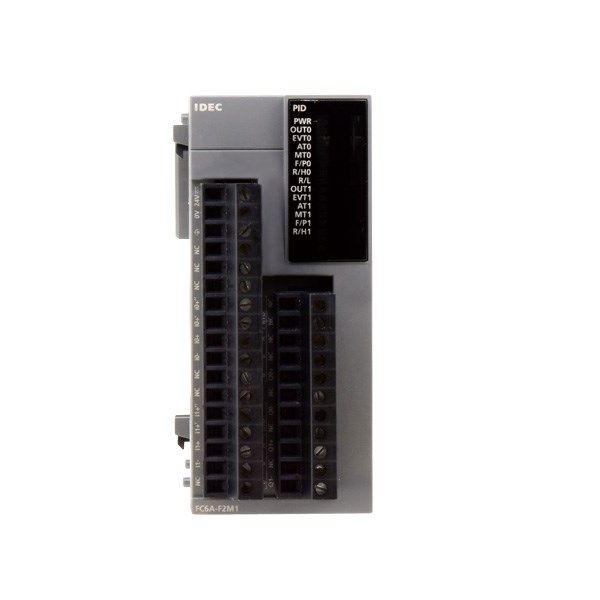

IDEC FC6A-F2M1 PID Module
