Products

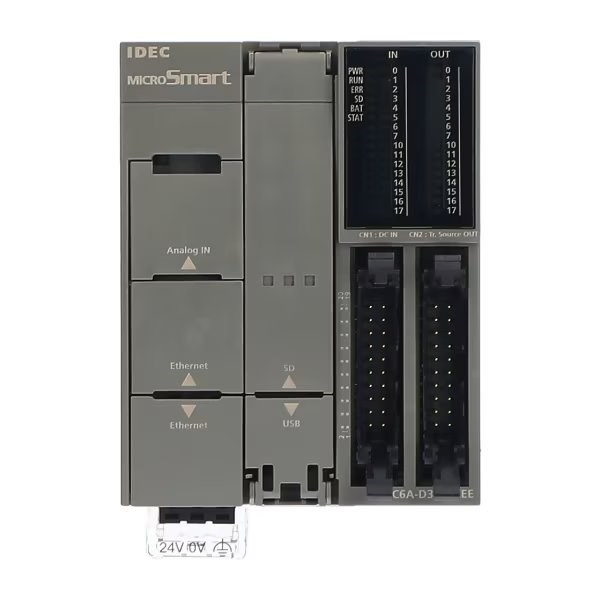

IDEC FC6A-D32P4CEE CPU Base Module 24VDC

Product Code: FC6A-D32P4CEE

  • PLC with USB & dual Ethernet ports
  • Operates at 24 VDC
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
CPU Module
Brand
IDEC
Series
FC6 A MicroSmart PLC

Electrical

Analog Resolution
12 bits
Digital Inputs
16
Digital Outputs
16
Output Ratings
24V DC, 0.1A per point
Input Ratings
24V DC; 5mA/pt (high speed), 7mA/pt (normal speed)
Input Type
24V DC Sink/Source
Output Type
Transistor Source
Power Consumption
3.36W
Supply Voltage
24V DC
Terminal Type
Push-in Terminals
Analog Inputs
1

Dimensions & Physical Data

Depth
73mm
Height
90mm
Width
70mm

Environmental

Storage Temperature
-25°C to 70°C
Operating Temperature
-25°C to 65°C
IP Rating
IP20

Communication & Control

Ethernet Port Speed
10/100 Mbps
Ethernet Ports
2
Expandable Communications
Yes
USB Port
1
Supported Ethernet Protocols
Modbus TCP
Supported Serial Protocols
Modbus RTU

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Division 2
Certifications / Approvals
CE, UL, TUV

Accessories & Additional Information

Development Software
Automation Organizer / WindLDR

Documents

IPD Product Catalogue V17
