Product Code: FC6A-D16R1CEE

USB and dual Ethernet ports for connectivity
Supports Ladder and Script programming
24 VDC rated voltage
Screw terminal type for secure connections
36-month warranty for peace of mind

Specifications

General

Product Type

CPU Module

Brand

IDEC

Series

FC6A MicroSmart PLC

Electrical

Analog Resolution 12 bits	Channel Isolation Optocoupler-isolated	Digital Inputs 8
Digital Outputs 8	No. of Analog Inputs 1	No. of Analog Outputs 0
No. of Digital Inputs 8	No. of Digital Outputs 8	Output Ratings 240V AC 2A, 30V DC 2A
Input Ratings 24V DC; 5mA/pt (high speed), 7mA/pt (normal speed)	Input Type 24V DC Sink/Source	Output Type Relay
Power Consumption 2.88W	Supply Voltage 24VDC	Terminal Type Screw Terminals
Analog Inputs 1

Mechanical

Mounting Method

DIN Rail/Panel

Dimensions & Physical Data

Depth

73.0 mm

Height

90.0 mm

Width

70.0 mm

Environmental

Storage Temperature

-25 to +70°C

Operating Temperature

-25 to 65?

IP Rating

IP20

Communication & Control

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 2	Expandable Communications Yes
Serial Ports 0	USB Port 1	Supported Ethernet Protocols Modbus TCP
Supported Serial Protocols Modbus RTU

Safety, Standards & Compliance

Compliance Standards

CE, UL, TUV

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer / WindLDR

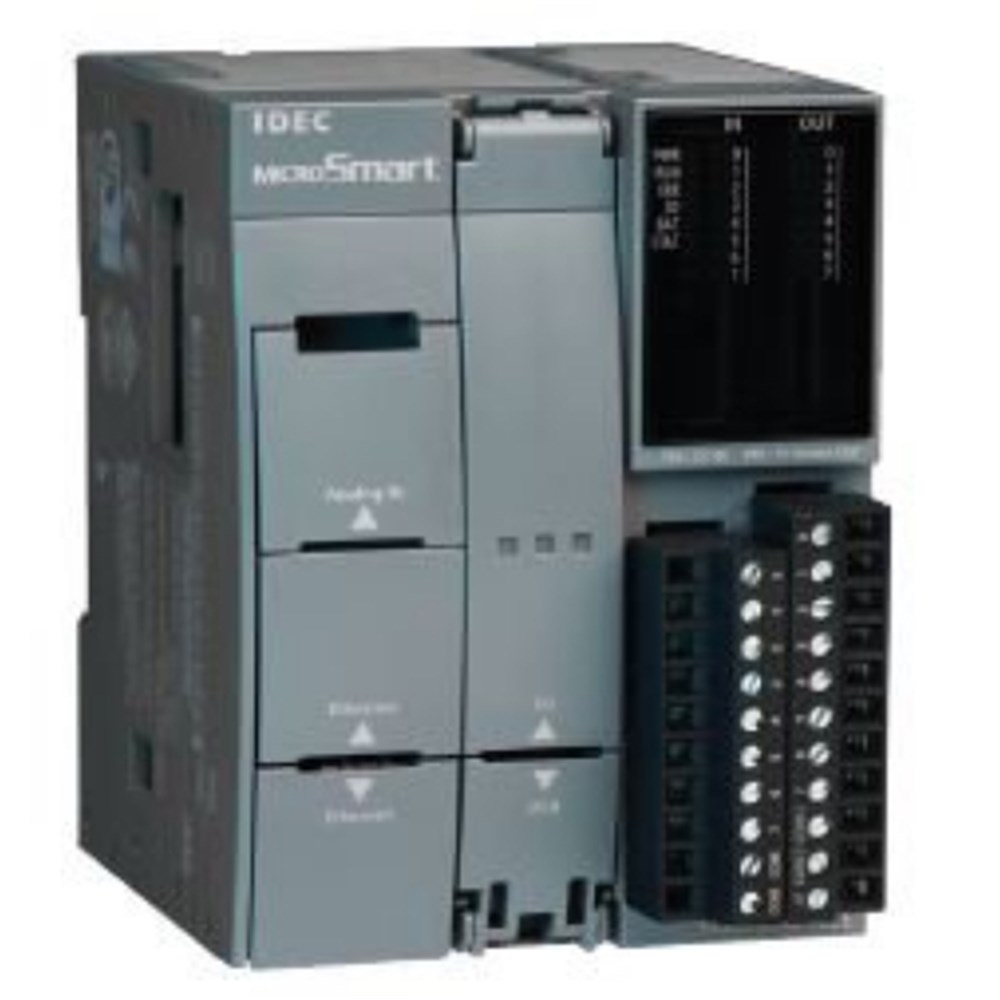

IDEC FC6A-D16R1CEE CPU Base Module 24VDC 16 Digital Inputs
