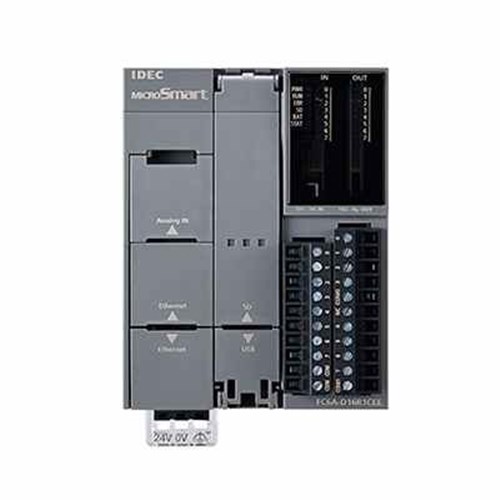

IDEC FC6A-D16K1CEE CPU Base Module 24VDC 16 Digital Inputs

Product Code: FC6A-D16K1CEE

  • USB & dual Ethernet ports for connectivity
  • Supports Ladder and Script programming
  • 24 VDC rated voltage for reliable power
  • Screw terminals ensure secure connections
  • 36-month warranty for peace of mind
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
CPU Module
Brand
IDEC
Series
FC6 A MicroSmart PLC

Electrical

Analog Resolution
12 bits
Digital Inputs
8
Digital Outputs
8
Output Ratings
24V DC, 0.5A per point
Analog Outputs
0
Input Ratings
24V DC; 5mA (high), 7mA (normal)
Input Type
24V DC Sink/Source
Output Type
Transistor Sink
Power Consumption
2.88W
Supply Voltage
24V DC
Terminal Type
Screw Terminals
Analog Inputs
1

Dimensions & Physical Data

Depth
73mm
Height
90mm
Width
70mm

Environmental

Storage Temperature
-25°C to 70°C
Operating Temperature
-25°C to 65°C
IP Rating
IP20

Communication & Control

Ethernet Port Speed
10/100 Mbps
Ethernet Ports
2
Expandable Communications
Yes
Fieldbus Interface
Ethernet
Serial Ports
0
USB Port
1
Supported Ethernet Protocols
Modbus TCP
Supported Serial Protocols
Modbus RTU

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Division 2
Certifications / Approvals
CE, UL, TUV

Accessories & Additional Information

Development Software
Automation Organizer / WindLDR

Documents

IPD Product Catalogue V17
