Product Code: FC6A-C40P1CE

USB, RS-232C/RS-485 & Ethernet interfaces
Supports Ladder and Script programming
24 VDC rated voltage
36-month warranty for peace of mind

Specifications

General

Product Type

CPU Module

Brand

IDEC

Series

FC6A MicroSmart PLC

Electrical

Digital Inputs 24	Digital Outputs 16	Output Ratings 24V DC, 0.5A per point
Analog Outputs 0	Input Ratings 24V DC; 5mA (high), 7mA (normal)	Input Type 24V DC Sink/Source
Output Type Transistor Source	Power Consumption 5.0W	Supply Voltage 24VDC
Terminal Type Screw Terminals	Analog Inputs 1

Mechanical

Mounting Method

DIN Rail/Panel

Dimensions & Physical Data

Depth

73.0 mm

Height

90.0 mm

Width

163.0 mm

Environmental

Storage Temperature

-25 to +70°C

Operating Temperature

-25 to 65?

IP Rating

IP20

Communication & Control

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 1	Expandable Communications Yes
Fieldbus Interface Ethernet, RS-232C/RS-485	Serial Ports 1	USB Port 1
Supported Ethernet Protocols Modbus TCP	Supported Serial Protocols Modbus RTU

Safety, Standards & Compliance

Compliance Standards

CE, UL, TUV

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer / WindLDR

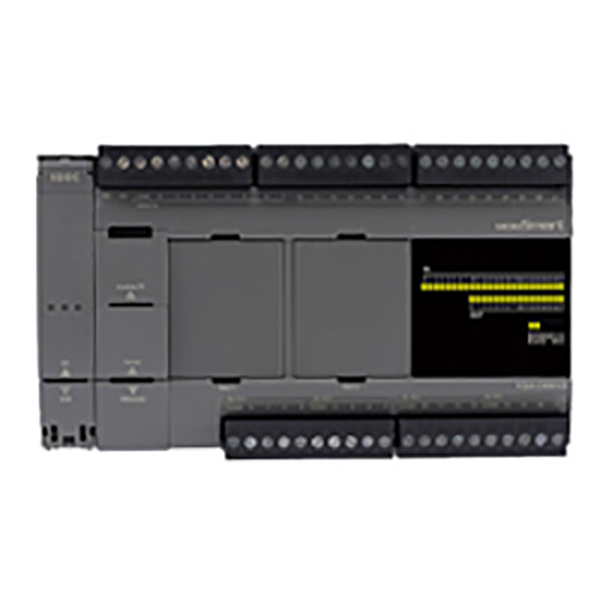

IDEC FC6A-C40P1CE All-In-One CPU Module 24VDC 40 Digital Inputs
