Product Code: FC6A-C40K1DE

USB, RS-232C/RS-485, Ethernet connectivity
Supports Ladder and Script programming
12 VDC rated voltage
36-month warranty

Specifications

General

Product Type

CPU Module

Brand

IDEC

Series

FC6 A MicroSmart PLC

Electrical

Digital Inputs 24	Digital Outputs 16	Output Ratings 12V DC, 0.5A per point
Analog Outputs 0	Input Ratings 12V DC; 5mA (high), 6mA (normal)	Input Type 12V DC Sink/Source
Output Type Transistor Sink	Power Consumption 3.12W	Supply Voltage 12V DC
Terminal Type Screw Terminals	Analog Inputs 1

Dimensions & Physical Data

Depth

73mm

Height

90mm

Width

163mm

Environmental

Storage Temperature

-25°C to 70°C

Operating Temperature

-25°C to 65°C

IP Rating

IP20

Communication & Control

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 1	Expandable Communications Yes
Fieldbus Interface Ethernet, RS-232C/RS-485	Serial Ports 1	USB Port 1
Supported Ethernet Protocols Modbus TCP	Supported Serial Protocols Modbus RTU

Safety, Standards & Compliance

Hazardous Location Ratings

Class I Division 2

Certifications / Approvals

CE, UL, TUV

Accessories & Additional Information

Development Software

Automation Organizer / WindLDR

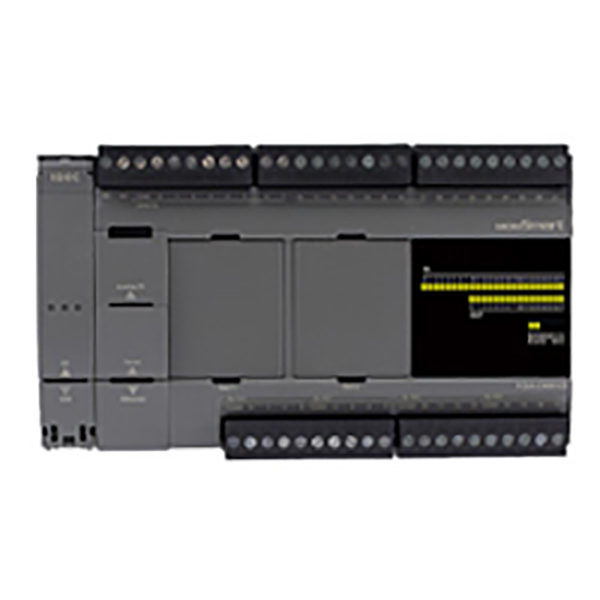

IDEC FC6A-C40K1DE All-In-One CPU Module 12VDC 40 Digital Inputs

Product Code: FC6A-C40K1DE
