Product Code: FC6A-C40K1CEJ

Supports USB, RS-232C/RS-485 & Ethernet ports
Ladder and Script programming compatible
24 VDC rated voltage for reliable performance
Backed by a 36-month warranty

Specifications

General

Product Type

CPU Module

Brand

IDEC

Series

FC6 A MicroSmart PLC

Electrical

Digital Inputs 24	Digital Outputs 16	Output Ratings 24V DC, 0.5A per point
Analog Outputs 0	Input Ratings 24V DC; 5mA (high speed), 7mA (normal)	Input Type 24V DC Sink/Source
Output Type Transistor Sink	Power Consumption 4.2W	Supply Voltage 24V DC
Terminal Type Screw Terminals	Analog Inputs 1

Dimensions & Physical Data

Depth

73mm

Height

90mm

Width

163mm

Environmental

Storage Temperature

-25°C to 70°C

Operating Temperature

-25°C to 65°C

IP Rating

IP20

Communication & Control

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 1	Expandable Communications Yes
Fieldbus Interface J1939	Serial Ports 1	USB Port 1
Supported Ethernet Protocols Modbus TCP	Supported Serial Protocols Modbus RTU

Safety, Standards & Compliance

Hazardous Location Ratings

Class I Division 2

Certifications / Approvals

CE, UL, TUV

Accessories & Additional Information

Development Software

Automation Organizer / WindLDR

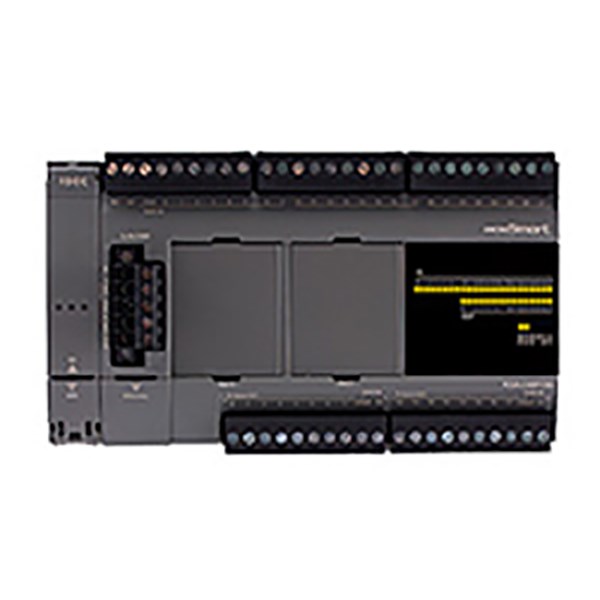

IDEC FC6A-C40K1CEJ All-In-One CPU Module 24VDC 40 Digital Inputs

Product Code: FC6A-C40K1CEJ
