Product Code: FC6A-C24R1AE

USB, RS-232C/RS-485, Ethernet ports
Supports Ladder and Script programming
Operates on 100-240 VAC
36-month warranty

Specifications

General

Product Type

CPU Module

Brand

IDEC

Series

FC6 A MicroSmart PLC

Electrical

Analog Resolution 10 bits	Digital Inputs 14	Digital Outputs 10
Output Ratings 240V AC 2A, 30V DC 2A	Analog Outputs 0	Input Ratings 24V DC; 5mA (high speed), 7mA (normal)
Input Type 24V DC Sink/Source	Output Type Relay	Power Consumption 35VA
Supply Voltage 100V to 240V AC	Terminal Type Screw Terminals	Analog Inputs 1

Dimensions & Physical Data

Depth

73mm

Height

90mm

Width

110mm

Environmental

Storage Temperature

-25°C to 70°C

Operating Temperature

-25°C to 65°C

IP Rating

IP20

Communication & Control

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 1	Expandable Communications Yes
Fieldbus Interface Ethernet, RS-232C/RS-485	Serial Ports 1	USB Port 1
Supported Ethernet Protocols Modbus TCP	Supported Serial Protocols Modbus RTU

Safety, Standards & Compliance

Hazardous Location Ratings

Class I Division 2

Certifications / Approvals

CE, UL, TUV

Accessories & Additional Information

Development Software

Automation Organizer / WindLDR

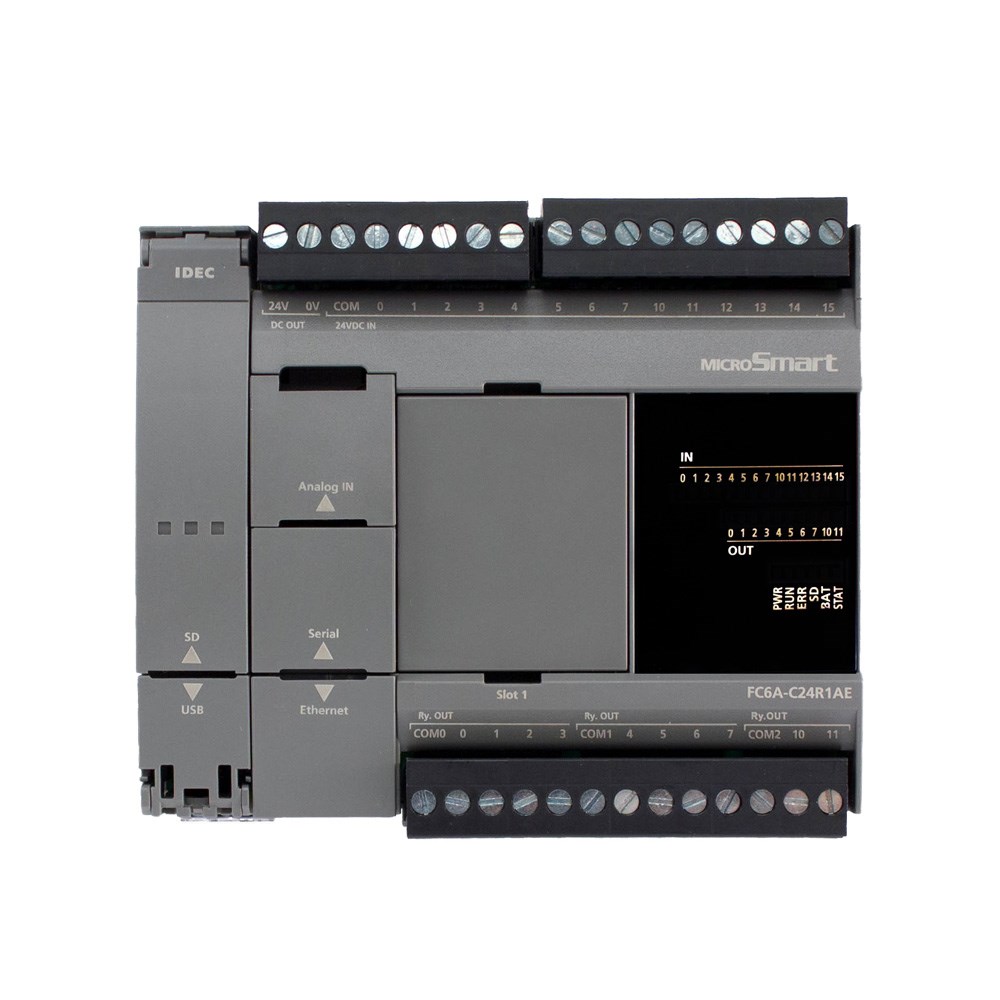

IDEC FC6A-C24R1AE All-In-One CPU Module 100-240VAC 24 Digital Inputs

Product Code: FC6A-C24R1AE
