Product Code: FC6A-C16R1CE

Supports USB, RS-232C/RS-485, and Ethernet ports
Programmable with Ladder and Script languages
Operates at a 24 VDC rated voltage
Comes with a 36-month warranty

Specifications

General

Product Type

CPU Module

Brand

IDEC

Series

FC6A MicroSmart PLC

Electrical

Analog Resolution 10 bits	Channel Isolation Optocoupler-isolated	Digital Inputs 9
Digital Outputs 7	No. of Analog Inputs 1	No. of Analog Outputs 0
No. of Digital Inputs 9	No. of Digital Outputs 7	Output Ratings 240V AC 2A, 30V DC 2A
Input Ratings 24V DC; 5mA (high speed), 7mA (normal)	Input Type 24V DC (Sink/Source)	Output Type Relay
Power Consumption 3.36W	Supply Voltage 24VDC	Terminal Type Screw Terminals
Analog Inputs 1

Mechanical

Mounting Method

DIN Rail/Panel

Dimensions & Physical Data

Depth

73.0 mm

Height

90.0 mm

Width

95.0 mm

Environmental

Storage Temperature

-25 to +70°C

Operating Temperature

-25 to 65?

IP Rating

IP20

Communication & Control

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 1	Expandable Communications Yes
Serial Ports 1	USB Port 1	Supported Ethernet Protocols Modbus TCP
Supported Serial Protocols Modbus RTU

Safety, Standards & Compliance

Compliance Standards

CE, UL, TUV

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer / WindLDR

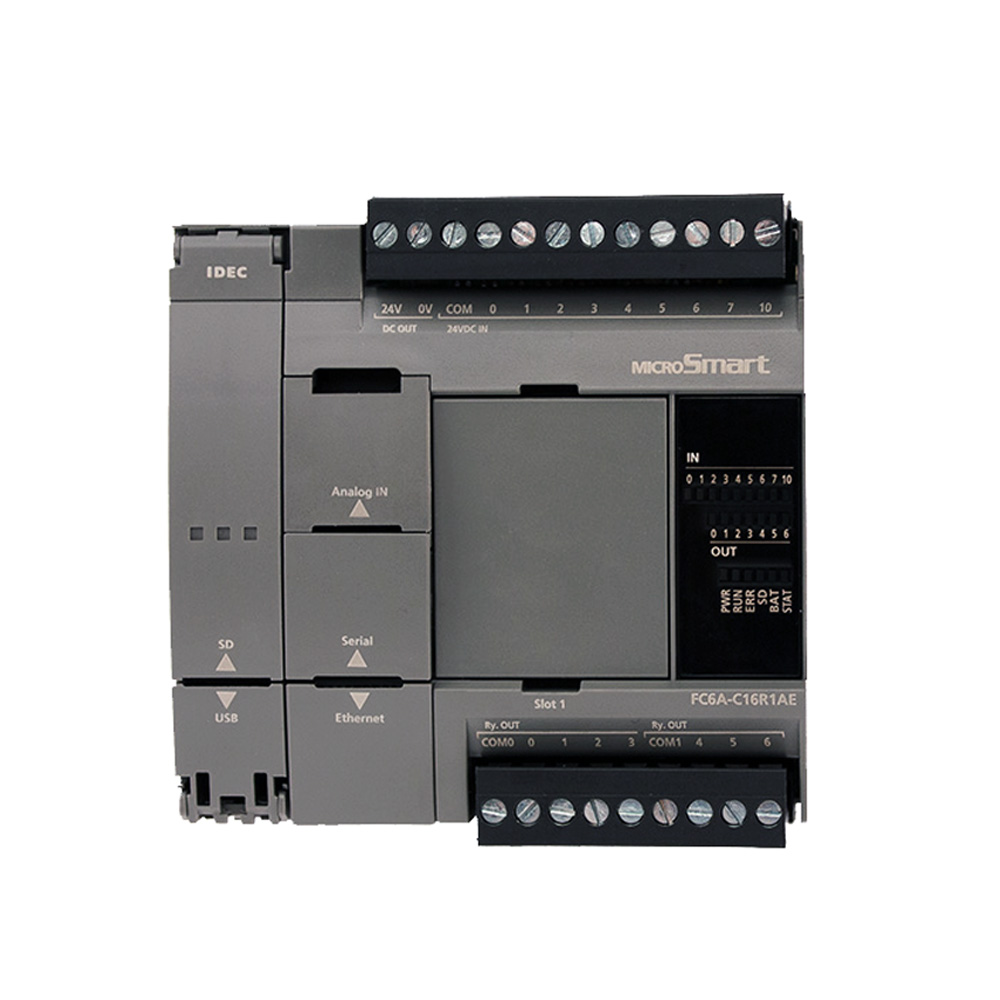

IDEC FC6A-C16R1CE All-In-One CPU Module 24VDC 16 Digital Inputs
