Product Code: FC6A-C16R1AE

USB, RS-232C/RS-485, Ethernet interfaces
Supports Ladder and Script languages
Operates on 100-240 VAC
36-month warranty for peace of mind

Specifications

General

Product Type

CPU Module

Brand

IDEC

Series

FC6A MicroSmart PLC

Electrical

Analog Resolution 10 bits	Digital Inputs 9	Digital Outputs 7
Output Ratings 240V AC 2A, 30V DC 2A	Analog Outputs 0	Input Ratings 24V DC; 5mA (high speed), 7mA (normal)
Input Type 24V DC (Sink/Source)	Output Type Relay	Supply Voltage 100-240VAC
Terminal Type Screw Terminals	Analog Inputs 1

Mechanical

Mounting Method

DIN Rail/Panel

Dimensions & Physical Data

Depth

73.0 mm

Height

90.0 mm

Width

95.0 mm

Environmental

Storage Temperature

-25 to +70°C

Operating Temperature

-25 to 65?

IP Rating

IP20

Communication & Control

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 1	Expandable Communications Yes
Fieldbus Interface Ethernet, RS-232C/RS-485	Serial Ports 1	USB Port 1
Supported Ethernet Protocols Modbus TCP	Supported Serial Protocols Modbus RTU

Safety, Standards & Compliance

Compliance Standards

CE, UL, TUV

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Automation Organizer / WindLDR

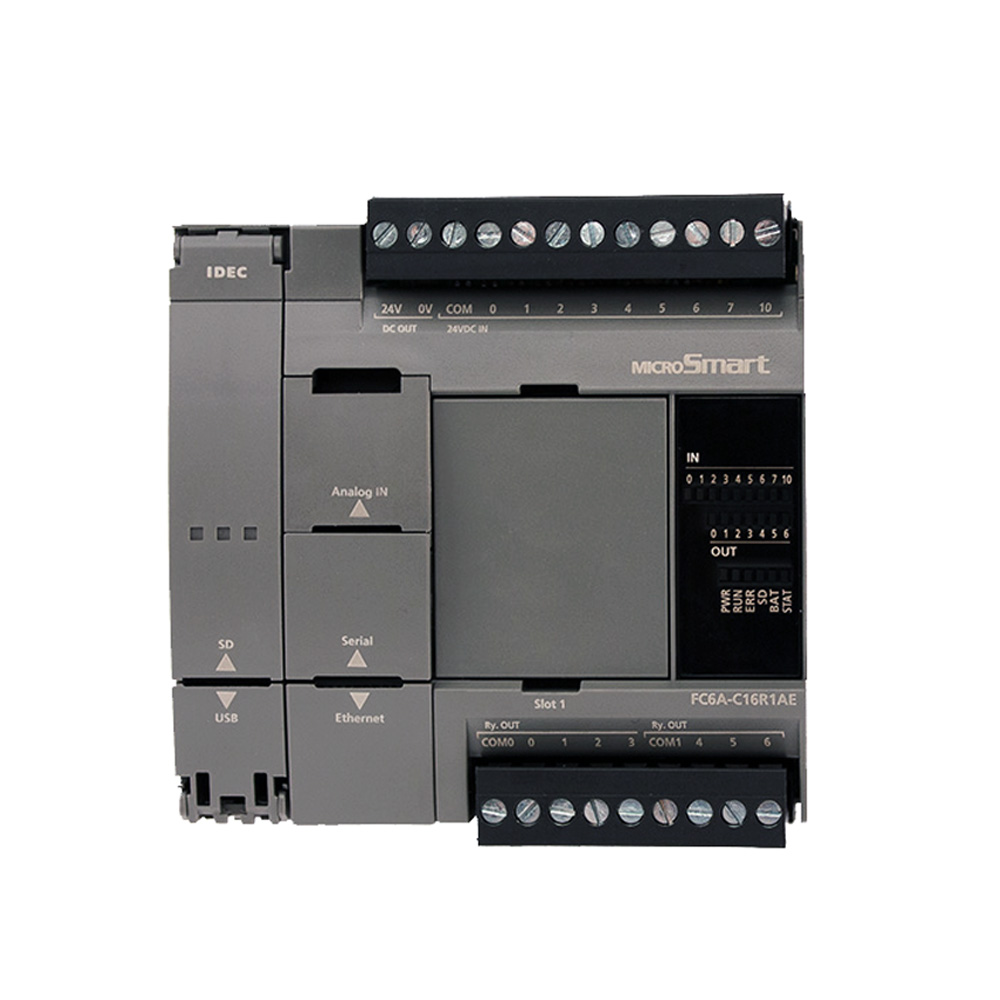

IDEC FC6A-C16R1AE All-In-One CPU Module 100-240VAC 16 Digital Inputs
