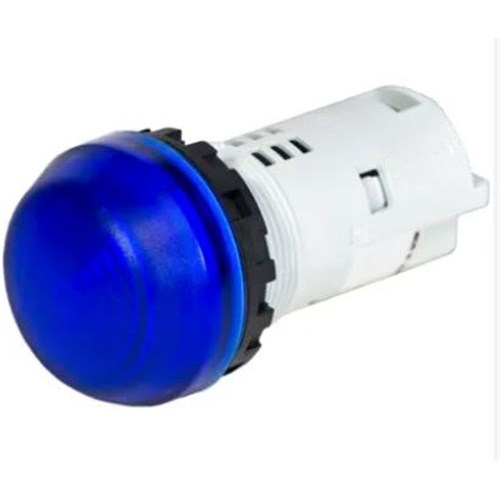

IDEC AP22M-2QHS AP22M Series Pilot Light with Intergrated blue LED 120V AC

Product Code: AP22M-2QHS

  • Clear lamp for easy visibility
  • Operates on 6 VAC/VDC
  • Compatible with power supplies
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pilot Light
Brand
IDEC
Series
AP22M

Electrical

Rated Current (In)
0.024A
Rated Voltage (Ur)
120V AC
Terminal Type
Screw Terminals

Mechanical

Bezel Material
plastic
Lamp Colour
Blue
Lens Colour
Blue
Lens Shape
Dome

Dimensions & Physical Data

Mounting Hole Diameter (mm)
22mm

Environmental

IP Rating
Panel front: IP66 (IEC 60529), UL Type 4X, Terminals: IP20

Documents

IPD Product Catalogue V17
