Specifications

Product Type

HMI + PLC

Brand

IDEC

Series

SmartAXIS

Analog Resolution 12-bit	Channel Isolation Photocoupler-isolated	Digital Inputs 10
Digital Outputs 6	Output Ratings 24V DC, 0.5A/pt, 3A/common	Analog Outputs 2
Input Ratings 24V DC nominal (Range 0 to 28.8V DC)	Input Type Sink/Source (Digital), Voltage/Current (Analog)	Output Type Transistor Source
Power Consumption 17W	Supply Voltage 24V DC	Terminal Type Push-in Terminal
Analog Inputs 4	Sunlight Readable No ( 500 cd/m²)	Touch Type Projected Capacitive

Housing Material

Plastic

Display Colour/Type

65536 Colors

Depth 41.3mm	Height 128mm	Width 186mm
Panel Cut-Out Size 176.6 x 118.6mm	Display Size 7-inch

Storage Temperature

-20°C to 70°C

Operating Temperature

-20°C to 55°C

IP Rating

IP66f, IP67f

Ethernet Port Speed 10BASE-T / 100BASE-TX	Ethernet Ports 1	Expandable Communications Yes
Fieldbus Interface Modbus TCP, Modbus RTU/ASCII	Serial Ports 1	USB Port 2
Supported Ethernet Protocols EtherNet/IP, Modbus TCP, MQTT, FTP, Email, Web Server	Supported Serial Protocols Modbus RTU/ASCII

Hazardous Location Ratings

Class I Division 2, Groups A, B, C, D

Certifications / Approvals

UL 61010-1/2-201, UL 121201, CSA

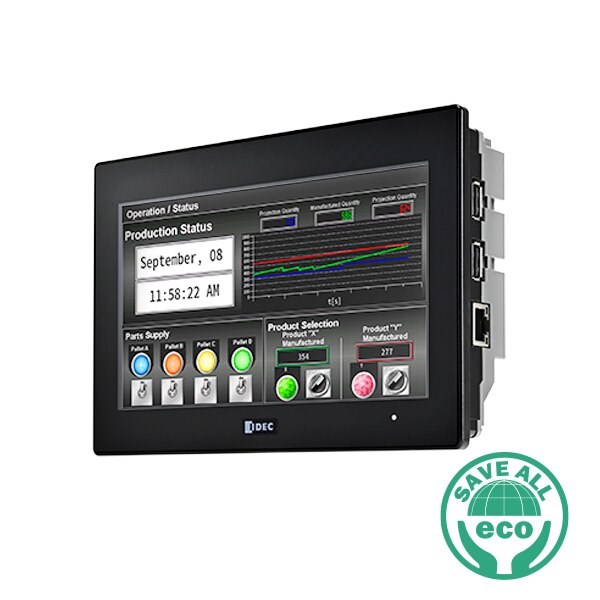

IDEC 7inch TFT 65K 14I/8O BLACK BEZ CAP. TOUCH LCD SOURCE OUTPUT FT2J-7U22SAF-B
