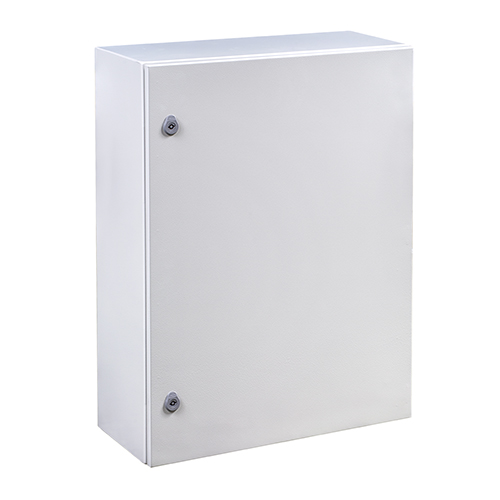

IDE MSB808025G Mild Steel Enclosure Cold Rolled Steel 800W 800H 250D RAL7035 Light Grey IP66

Product Code: MSB808025G

  • IP66 rated for superior dust and water protection
  • Made from durable cold rolled steel
  • Suitable for 1000 VAC/1500 VDC applications
  • Reversible door design for flexibility
  • Complies with IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 7035 grey
Material
Cold-rolled steel EN10130+A189
No. of Locks
2

Dimensions & Physical Data

Depth
250mm
Height
800mm
Width
800mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.

Documents

IPD Product Catalogue V17
