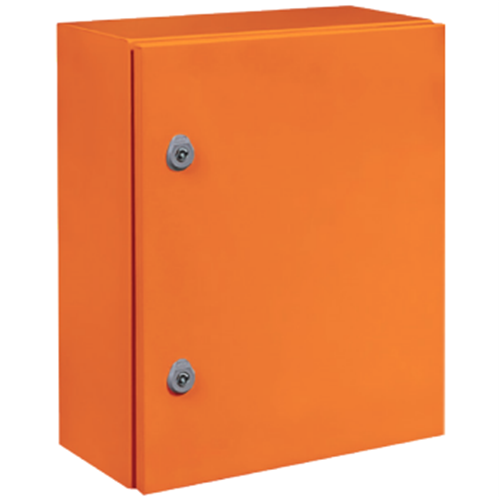

IDE MSB806040A Mild Steel Enclosure Cold Rolled Steel 600W 800H 400D RAL2008 Orange IP66

Product Code: MSB806040A

  • Wall-mounting cabinet, IP66 protection
  • Cold rolled steel construction
  • Rated for 1000 VAC, 1500 VDC
  • Reversible single/double door design
  • Complies with IEC & UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 2008 orange
Material
Cold-rolled steel EN10130+A184
No. of Locks
2

Dimensions & Physical Data

Depth
400mm
Height
800mm
Width
600mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.
