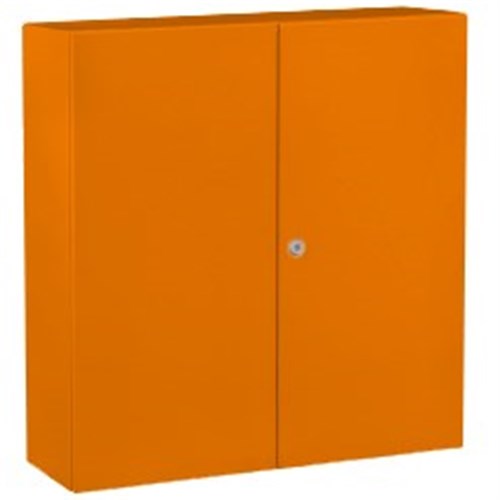

IDE MSB801230DDA Mild Steel Enclosure Cold Rolled Steel 1200W 800H 300D RAL2008 Orange IP55

Product Code: MSB801230DDA

  • Wall-mount cabinet with IP55 protection
  • Made from durable cold rolled steel
  • Rated for 1000 VAC and 1500 VDC
  • Double reversible door design
  • Complies with IEC & UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Metal Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 2008 orange
Material
Cold-rolled steel EN10130+A169
No. of Locks
2

Dimensions & Physical Data

Depth
300mm
Height
800mm
Width
1200mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.

Documents

IPD Product Catalogue V17
