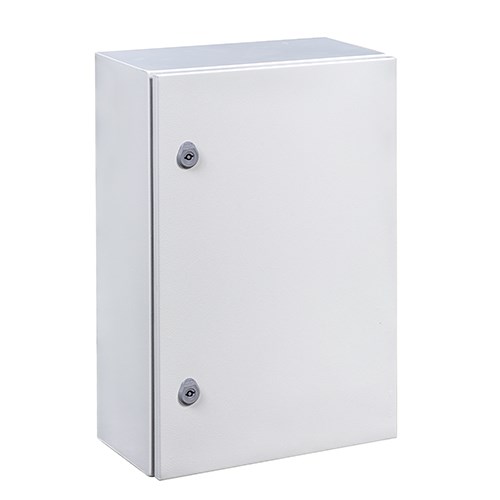

IDE MSB606030G Mild Steel Enclosure Cold Rolled Steel 600W 600H 300D RAL7035 Light Grey IP66

Product Code: MSB606030G

  • Rated for 1000 VAC, 1500 VDC; IP66 protection
  • Cold rolled steel, light grey RAL 7035 finish
  • Ambient temp range: -25 to 60°C
  • Max load: Cabinet 275kg, Door 25kg
  • Meets IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 7035 grey
Material
Cold-rolled steel EN10130+A148
No. of Locks
2

Dimensions & Physical Data

Depth
300mm
Height
600mm
Width
600mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.

Documents

IPD Product Catalogue V17
