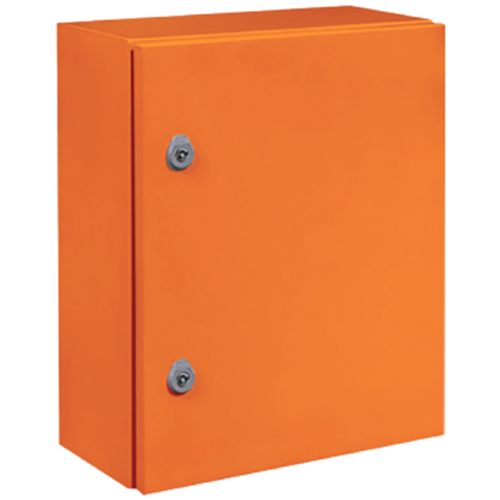

IDE MSB605015A Mild Steel Enclosure Cold Rolled Steel 500W 600H 150D RAL2008 Orange IP66

Product Code: MSB605015A

  • Wall-mount cabinet with IP66 protection
  • Suitable for 1000 VAC, 1500 VDC applications
  • Made from durable cold rolled steel
  • Compact size: 500x600x150 mm
  • Operates in -25 to 60°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Metal Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 2008 orange
Material
Cold-rolled steel EN10130+A134
No. of Locks
2

Dimensions & Physical Data

Depth
150mm
Height
600mm
Width
500mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.

Documents

IPD Product Catalogue V17
